Monster‑Ram Prevents Heater Grid Bolt Failure for RAM Cummins

“And this right here is your heater grid bolt and nut that rots off and drops into your engine,” says Alex Getliffe of Getty’s Garage. Before installing the Monster-Ram on his 2023 RAM 2500, Alex shows the problem facing all 2007.5 to 2024 RAM Cummins owners, and the aftermath of the damage that can be done to the engine as a result.
Full Video Transcript
00:00 and this right here is your heater grid bolt or nut that rots off and drops into your engine [Applause] well we’re back at my good friend Ryan’s shop with his very nice looking 2023 Ram 2500 with the 6.7 L Cumins baby and uh we get the joy of working out of this very nice
00:30 looking Snap-On toolbox he’s a fellow diesel mechanic and as you guys know if you want to be a good mechanic you got to get a Snap-on box we were lucky enough for Banks to send me one of their Monster Ram air intakes this puppy right here nice looking piece of equipment and
00:45 we will be installing that onto this truck today we’ll dive a little bit deeper into the potential benefits of having something like this on your truck but first I do want to talk about what the actual grid heater bolt issue is and whether or not you guys should be
01:01 worried this issue stems from a bolt or a nut on the backside of the heater grid and that nut can deteriorate and fall off fall into your intake and then fall into your engine usually taking out the number six cylinder so it can be a little bit problematic so we’re looking

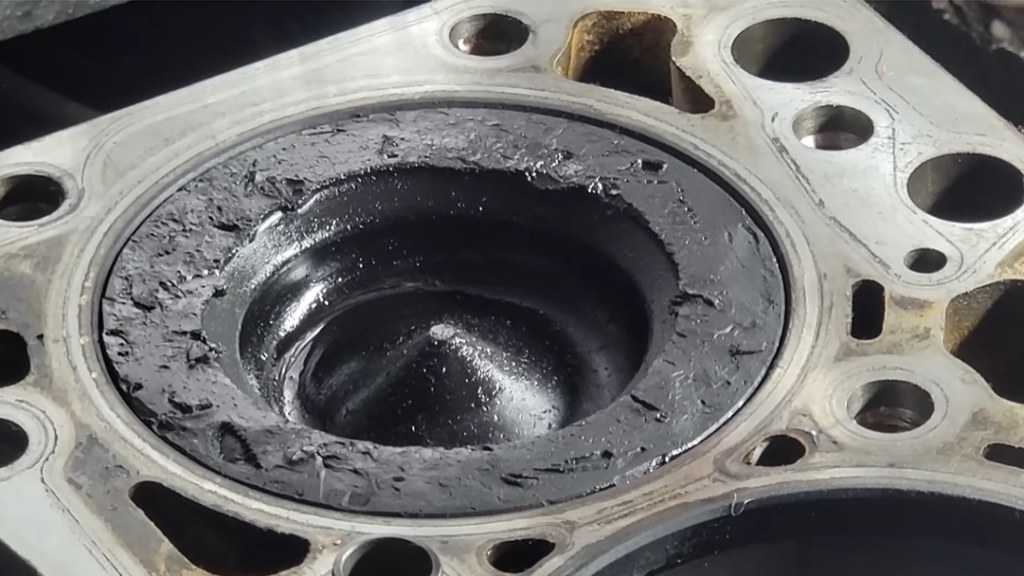

01:17 at 1 2 3 4 5 six so as you can see all the damage on the top of this piston um there’s actually embedded metal in this piston you can see how the magnet attaches to it um wow so that bolt um we did not find the whole bolt um some of it was was mashed into the piston um the
01:37 other pieces actually went into the turbo and we took a bore scope and looked in there and it actually it tore up the the turbine wheel on the turbo as well now a heater grid what it does is it essentially heats the air coming into the engine and helps this engine start
01:55 in colder weather colder climates i personally actually like a heater grid over glow plugs i think it’s a better solution but there is some debate on that before we get too ahead of ourselves the brand new 2025 Cummins they have actually switched to a glow plug setup so this issue no longer
02:12 pertains to them and moving forward it will not as well which is a good thing but the 2007 all the way up to 2024 6.7 L Cumins engines could potentially have a grid heater bolt fall off and ruin an engine now Banks claims the reason why this issue isn’t as well or as reported
02:30 as it should be is because a lot of these engine failures happen after warranty and are not reported so in climates where I live in Canada most likely this heater grid is probably used daily four to five months of the year and that could increase the likelihood of this heater grid bolt deteriorating
02:50 off and falling into your engine however Banks claims that it’s not really dependent on climate or cold weather in fact there have been a number of reports of southern US trucks that have had this issue and realistically should not have used their heater grid at all any time
03:07 of the year banks claims that this issue stems from a metallurgy problem so your heater grid is located right here on the intake and we will rip this all apart and we’ll we’ll give you some better visuals as we install that Banks Mos Ram air intake but if you want to know or
03:24 potentially know if your heater grid bolt is starting to fail there are a couple things you can do so right here that is the solenoid that goes to your um heater grid there and the bolt is actually on the back side of this solenoid so what you can do is you can just sort of wiggle it now so you guys
03:42 can hopefully see that that is not moving it’s nice and solid and that’s what you want you have the factory intake elbow removed and we can get a good look at the post go ahead and give it another wiggle test let’s get Oh my this is horrible bolt looks like it’s intact but Oh oh oh
04:12 if that solenoid was loose most likely means that you got problems and there is deterioration on that bolt and I would highly recommend digging into this intake and figuring out how bad it is before that bolt drops off another key thing is if you have heater grid circuit
04:29 codes it’s a very good telltale sign that there is some deterioration with this heater grid bolt and it’s only a matter of time so those are two things that you certainly can look at but it’s not a certainty if you don’t have any of those symptoms that your heater grid
04:43 bolt is not going to be an issue we’ll get on the tools we’ll dig in here and hopefully give you guys some some better visuals i got my uh my safety sandals with me today a real mechanic that I am or am not guess we’ll find out [Music] [Music] [Applause] [Music] [Applause] [Music] [Applause] [Music]
05:28 all this love that comes and go well we got our intake elbow off this right here this is your heater grid so these little fins will get really hot and they’ll help heat the intake air before it goes into your engine now I do want to point out cuz I’ve beenounding
05:49 this on modern diesels is uh look at all this carbon in here all this soot and that’s because of your EGR and it just puts carbon all back through your engine through your intake obviously and that’s why our heater grid looks like a big charcoal mess up here so we will be taking this out and the
06:11actual stud that breaks you guys can see it better now is that right there so if that is loose you probably have a problem another thing I want to point out now that we have our our uh intake elbow off the truck is look how much restriction is in this in comparison to the banks the
06:28 banks is wide open let’s get these side by side like the actual outside I’m going to call it diameter here is the same obviously but you can see internally there’s there’s just not as much air flow additionally Banks points out that their intake allows air to flow
06:47
into the intake much more gently where this stock you can see we basically have like a 90° right before she goes in through the uh the heater grid there so this Banks Monster Ram air intake will obviously eliminate the heater grid bolt issue but it’s also going to give you a
07:06 ton more air flow i think they say about 88% more air flow it’s going to help with throttle response firstly a little bit more power delivery as well as potentially some fuel economy savings just with simply adding more air flow now if you do end up putting a tune on
07:22 your 6.7 L Cumins this is where this maximum air flow gets really taken advantage of and you’re not going to be limited or restricted by the stock air intake because well an internal combustion engine is sort of just like a big air pump the more air you can shove into it and shove out of it the more
07:42 power you’re going to make kind of like the best of both worlds you get to eliminate the heater grid issue and you get to open up that engine and potentially make some more power anyways let’s continue disassembly next up is this wiring harness and we got to take
07:56 off some fuel lines i think we can keep that fuel rail in there i am genuinely interested to see if we have any corrosion whatsoever on this uh this drip bolt [Applause] [Music] [Applause] [Music] all this love that comes and goes hide and seek with guns in the streets we used to [Music] [Applause]
08:31 wrestled the old heater grid out of there and I’ll have to clean up inside there but uh yeah let me show you what is happening okay so this right here is the heater grid so this is the backside so this is what we were seeing on top of the engine that’s where I was saying there’s all
08:52 kinds of EGR crap on there so this is the backside this right here that is your heater grid bolt to me that’s that’s not looking too bad but there is a little bit of corrosion you can start to see there now that I’m actually really looking at this um it looks like it’s just soot on
09:15 there it doesn’t look like there’s much corrosion at all i believe this engine has about I think 70,000 km or so so she’s not new but um yeah this bolt looks pretty solid i was secretly hoping this thing was about to fall off but uh it looks it looks pretty decent and so
09:31 that solenoid we shook at the beginning of the video is literally hooked right onto that and so current comes flows through here and it heats up these fins and that’s what your heater grid is and it helps the engine to start in the winter um but yeah so we will not be
09:48 putting this heater grid back on and instead Banks has supplied us with this and once again you can see we’re going to have so much more air flow coming into our engine um this wasn’t doesn’t look too too restrictive but you could imagine as soot builds up on here it
10:04 will slowly close it off and I have seen on the commercial side of things the commercial ISB or the 67 Cummins these fins they can get so much soot in here and it almost looks like it’s clogging off the intake which will dramatically reduce performance you can even see on

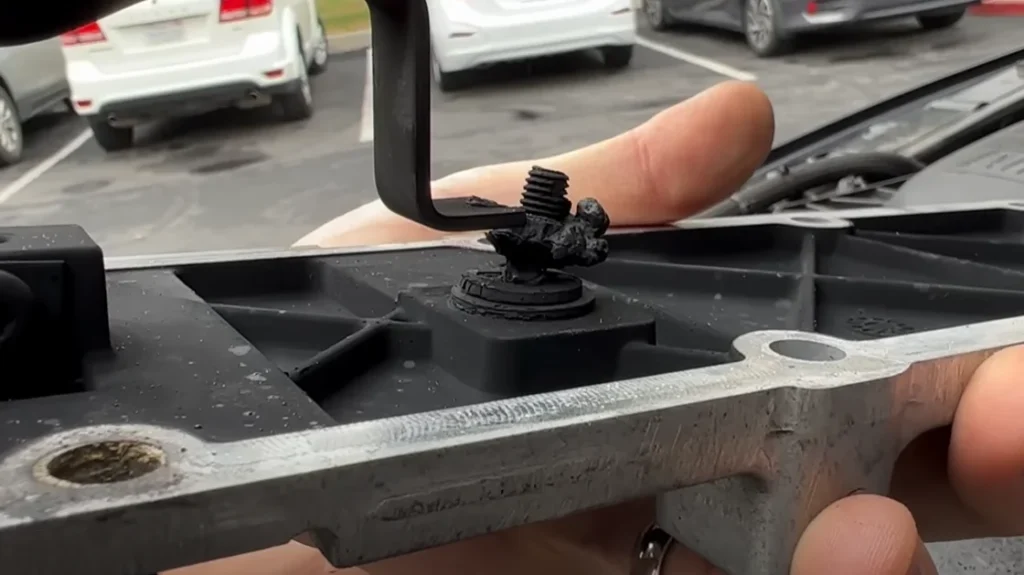

10:19 here like it’s just so much more wide open now I was chatting with Banks and they did mention that there is a possible secondary bolt that could also fall into your intake and this clip shows it perfectly and this one here you can see it’s perfectly solid nothing is
10:35 loose it’s all intact but then you come down to this end and this bolt is ready to fall out and you look on the other on the inside you can see it’s all melted and you can see there’s actually showing threads so it’s this thing was not very long away from falling into his motor

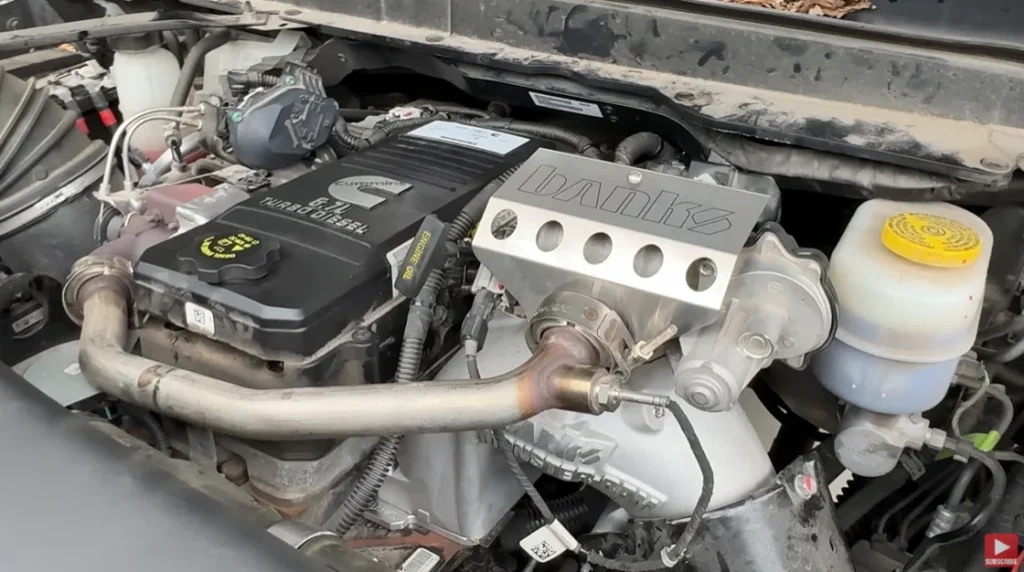

10:56 and taking out his engine well with a little movie magic we got her all nice and installed and it’s time to fire this old girl up now since we did drain the fuel rail it might take a little bit she might chug over a little but uh she should fire pretty good and maybe we’ll
11:13 even take it for a little voyage oh yeah there is a little bit better throttle response i think she works pretty good boys give her a little punch here oh yeah oh yeah well there you go out with the old in with the new she runs we don’t have any leaks so seems like I did a good job at
12:00 least hopefully that helps you guys understand the grid heater bolt issue with the 6.7 L Cumins from 2007 to 2024 and if you are looking for a very nice upgrade that can help to mitigate this problem and give you guys some better performance look no further than the Banks Monster Ram air intake
The carnage that the nut can do to the engine is nothing to laugh about, or to think that it’s something that won’t happen to your truck. In fact, the damage might not just be contained locally to the #6 cylinder; sometimes it can spread to the #5, or in the case shown, the turbocharger. “You can see all the damage on the top of the piston. There’s actually embedded metal in this piston. We didn’t find the whole bolt, because pieces actually went into the turbo. It tore up the turbine wheel exiting the turbo.” In this instance, the owner not only has the cost of repairing the engine, but also replacing it and servicing his DPF because fragments could have traveled into it. The tally just keeps adding up because of a simple $.35 bolt.

After showing the comparisons between the stock intake manifold and mounting plate to the Monster-Ram and billet plate, and with the installation completed, Alex takes the truck out for a drive. “Hopefully this helps you guys understand the grid heater bolt issue with the 6.7L Cummins.”

The Monster-Ram system is available for as little as $718 a limited time
