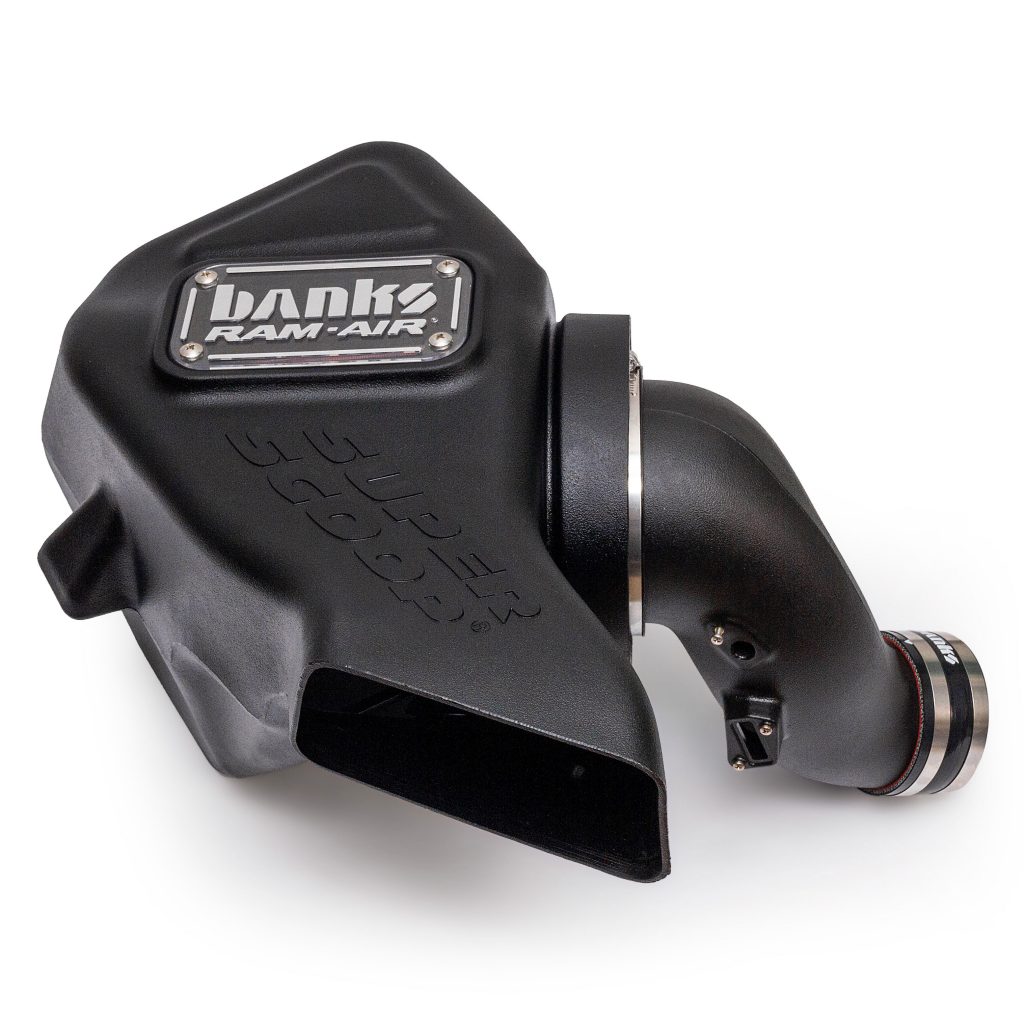

97719 Banks Ram-Air Cold Air Intake System for 2019-2024 Ram 2500/3500 6.7L Cummins
Section 1: General Assembly

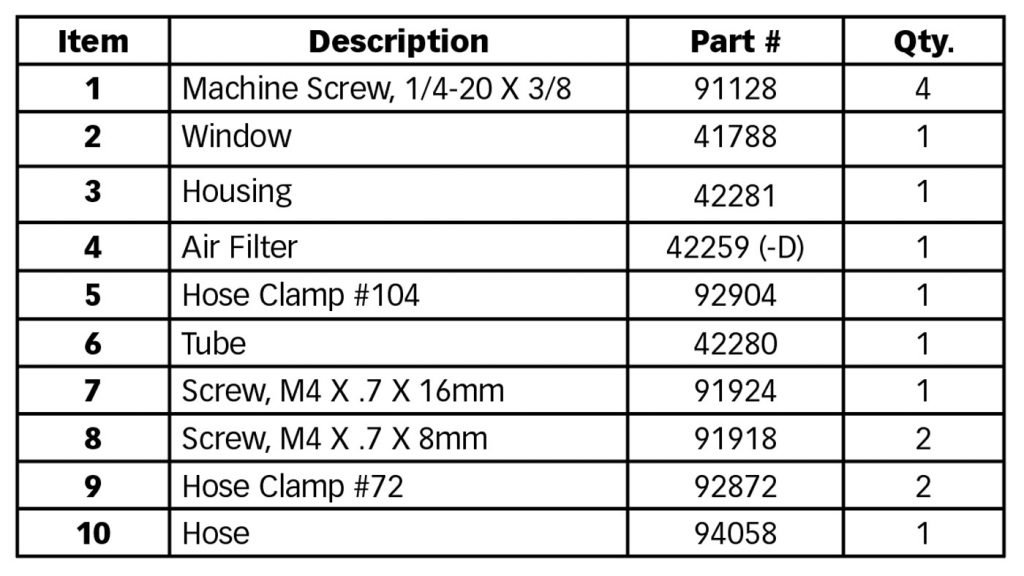

Bill of Materials
1. For ease of installation of your Banks Ram-Air system, familiarize yourself with the procedure by reading the entire manual before starting work.

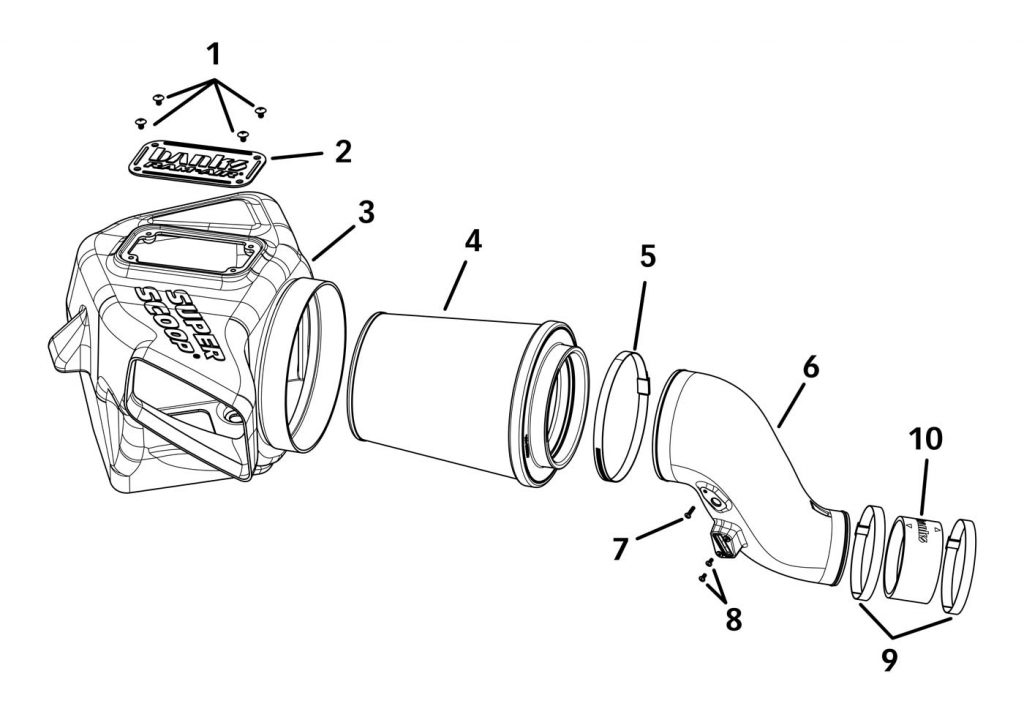

2. The exploded view of the Banks Ram-Air assembly provides only general guidance. Refer to each step and section diagram in this manual for proper instruction.
3. Throughout this manual, the left side of the vehicle refers to the driver’s side and the right side to the passenger’s side.
4. Disconnect the ground cable(s) from the battery(s) before beginning work.
If there are two batteries, disconnect both.
5. Route and tie wires and hoses
Maintain a minimum of six inches distance from exhaust heat, moving parts, and sharp edges. Clearance of eight inches or more is recommended where possible.
6. During installation, keep the work area clean.
If foreign debris are transferred to any Banks component, clean it thoroughly before installing.
7. When raising the vehicle, support it on properly weight-rated safety stands, ramps, or a commercial hoist.
Follow the manufacturer’s safety precautions. Take care to balance the vehicle to prevent it from slipping or falling. When using ramps, be sure the front wheels are centered squarely on the topsides; put the transmission in park; set the parking brake; and place blocks behind the rear wheels.
CAUTION:
Do not use floor jacks to support the vehicle while working under it. Do not raise the vehicle onto concrete blocks, masonry, or any other item not intended specifically for this use.
WARNING:
Vehicles that come with a Vehicle Emissions Control Information (VECI) label affixed to the Original Equipment Manufacturer’s (OEM) air intake system airbox must replace the VECI label when installing a Banks Ram-Air® Intake System. A missing VECI label will prevent the vehicle from passing a smog inspection. A replacement VECI label can be obtained from the dealership. Replacement VECI labels must be in a location that is readily visible, on a painted surface in the engine bay, and shall not be affixed to any equipment that is easily detached from the vehicle.
Tools Required:
10mm Socket
5/16″ Socket
Ratchet Extension
1/4″ Ratchet
Philips Screw Driver
Flat Head Screw Driver
Recommended:
Plastic Panel Popper Tool
5/16″ Nut Driver
Section 2: Stock Intake Tube Removal
Use caution when working in the engine compartment. Make sure the engine has been OFF for several hours and cool. Some components from the stock air intake system will remain in service. Take care when removing stock air intake components to not damage them.

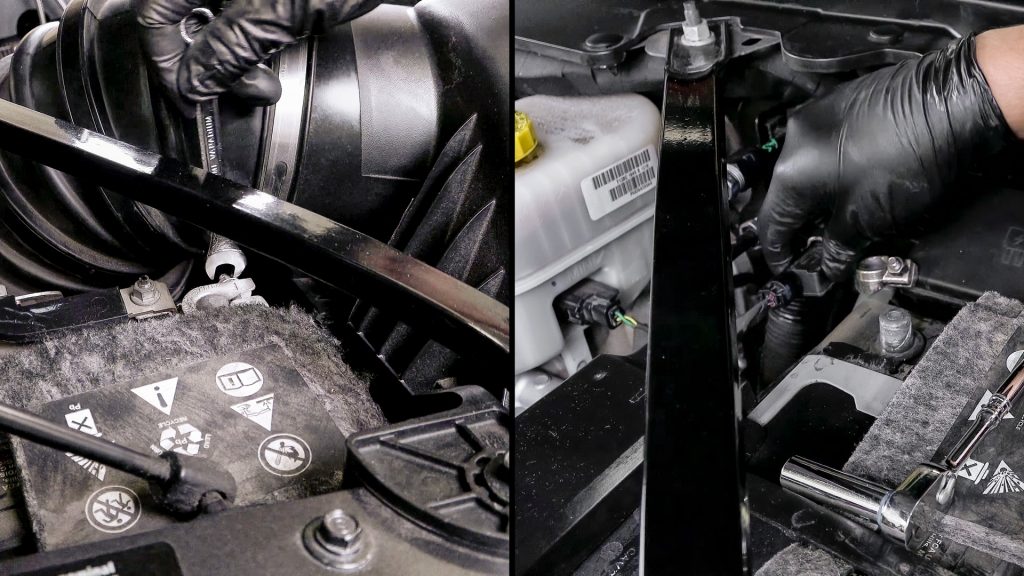

1. Disconnect negative battery cables. (both batteries)

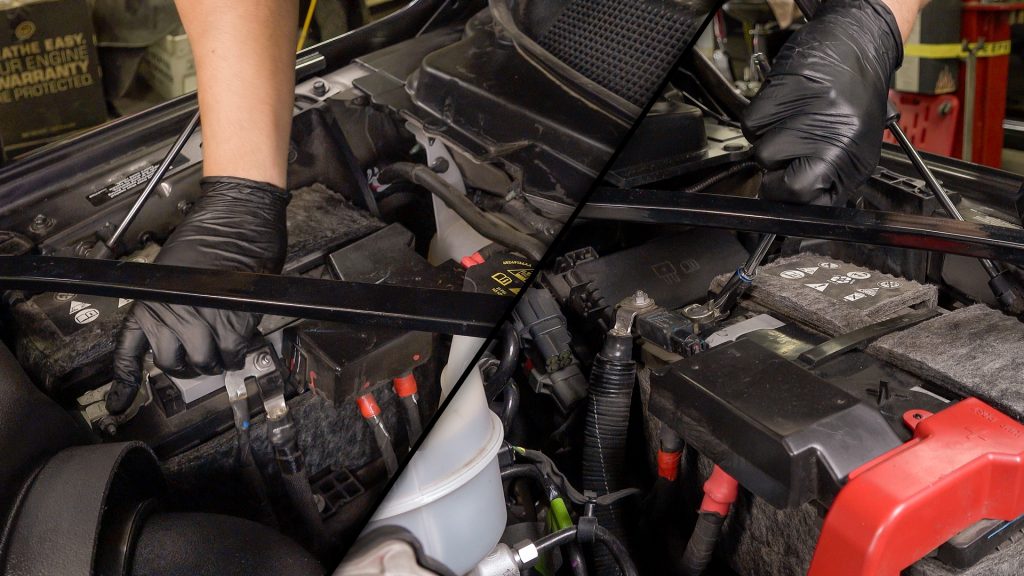

NOTE: Wait for 15 minutes before proceeding to allow the ECM to fully discharge.
Disconnecting sensors before the ECM is fully powered down can result in Check Engine Codes or starting in “Limp Mode” after install is complete.

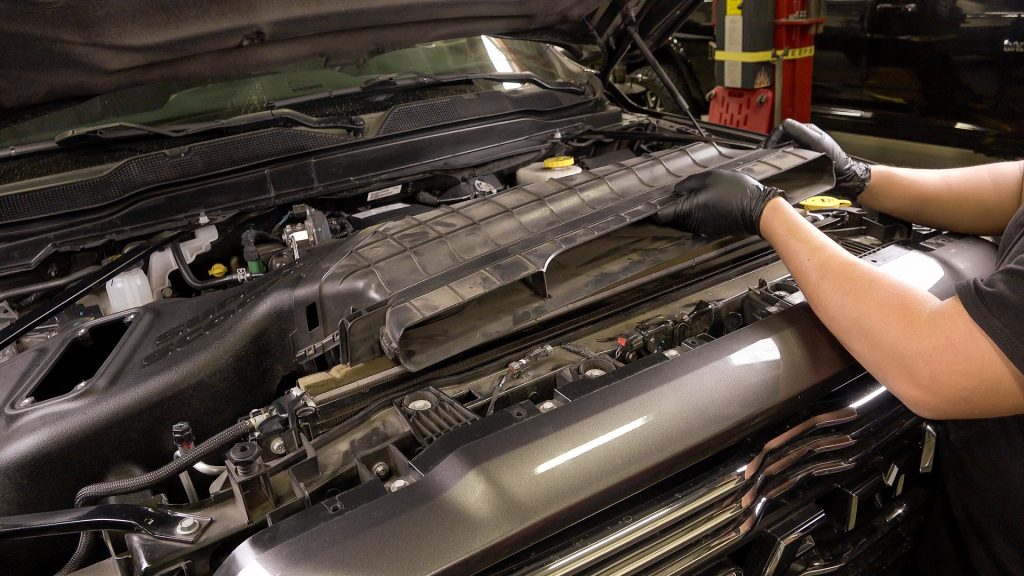

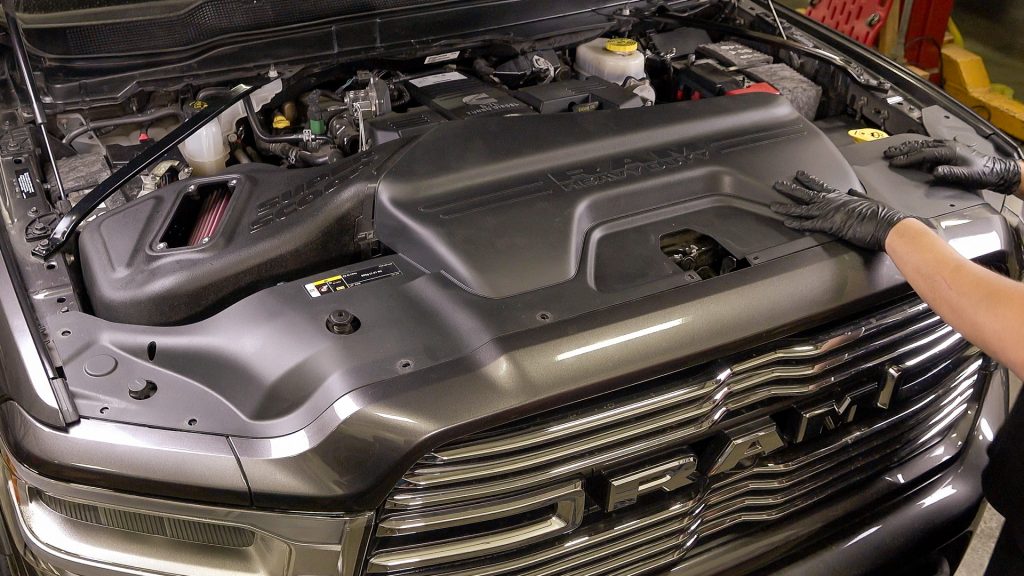

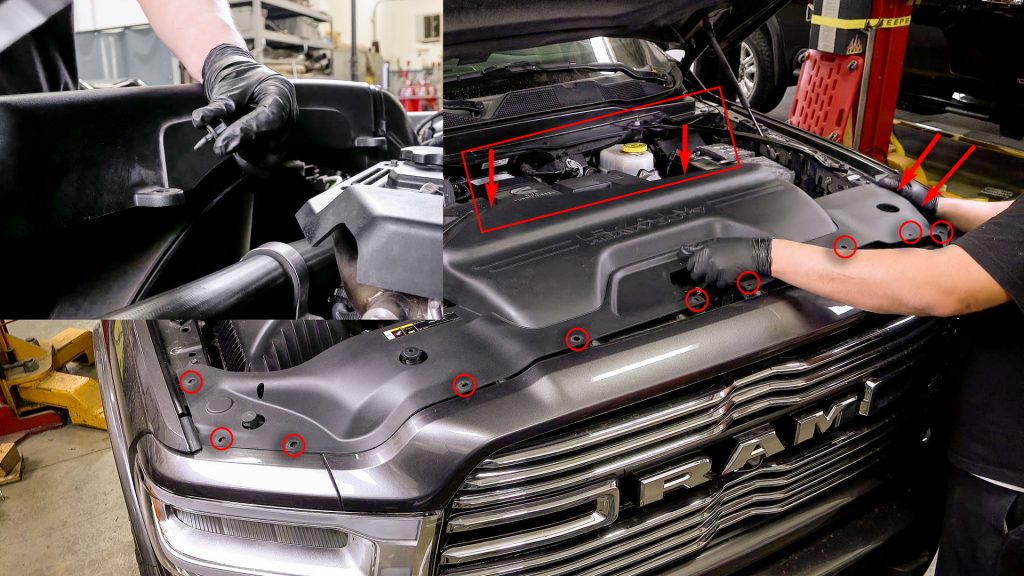

2. Remove OEM intake scoop cover
There are 12 plastic clips. Use a plastic panel popper tool to avoid damage to the cover.
Note: 2 are located behind the scoop.
Save the clips to be reused.

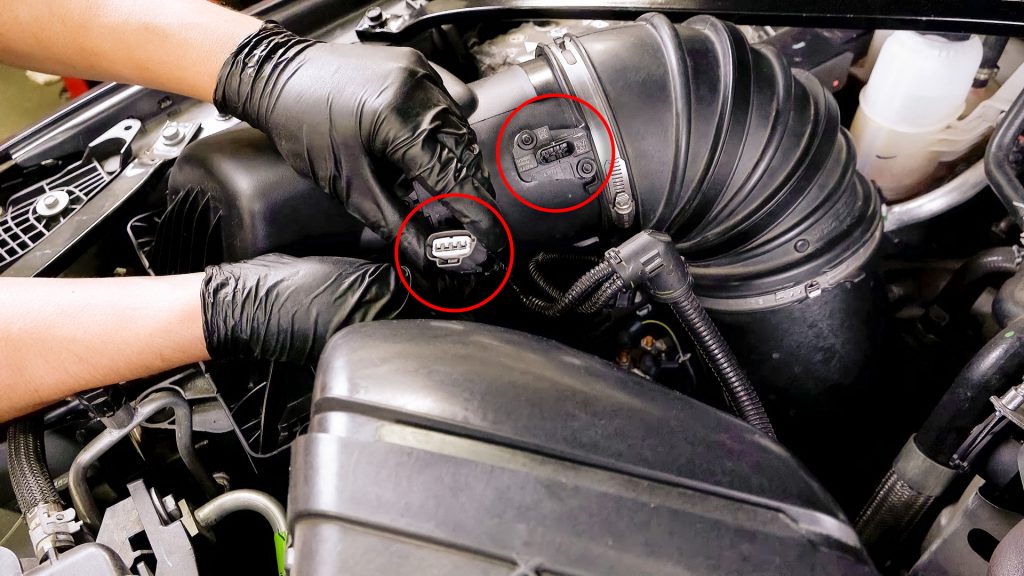

3. Disconnect the two sensors located on the intake housing lid.
a. First slide the harness clip free from the housing lid.
b. Then pull the retainer clip holding the harness to the scoop using a panel popper.
c. Pull the harness clear of the intake.
4. Detach the OEM scoop from the truck

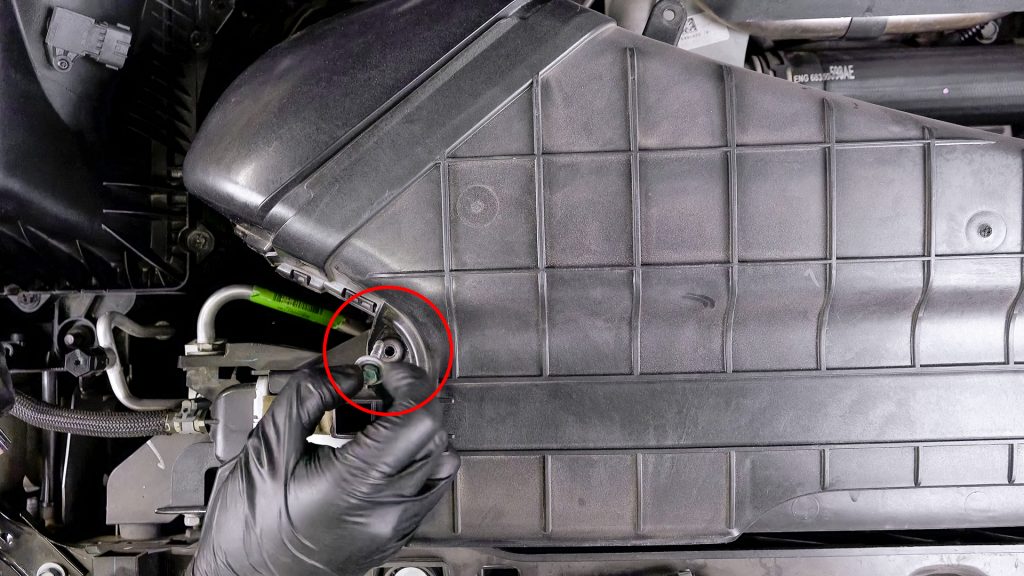

Remove the two bolts on either side of the scoop. Use a 10mm socket and ratchet.

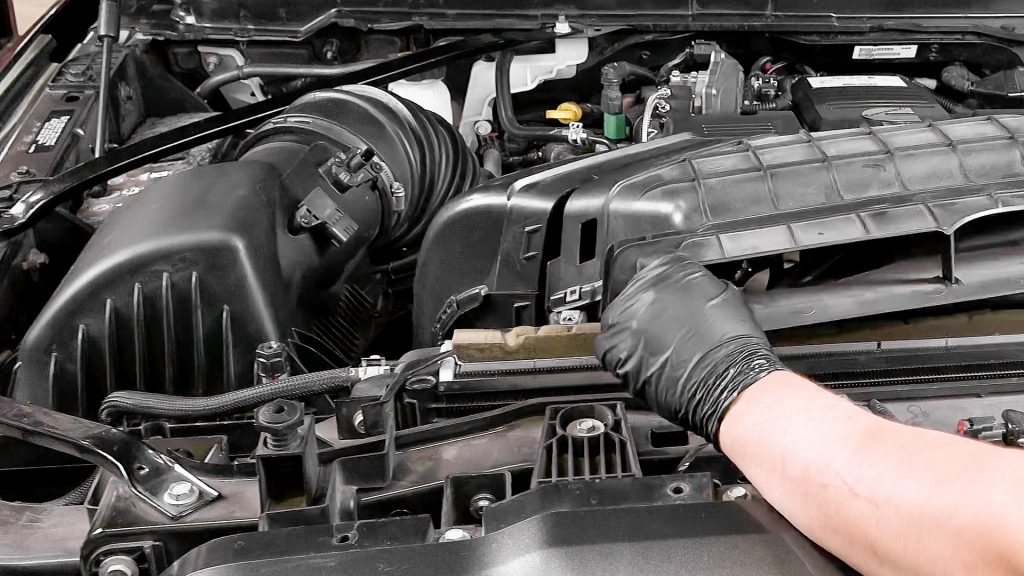

5. Separate scoop from the intake housing.
Note: The scoop will be reused with the Banks Ram-Air system.

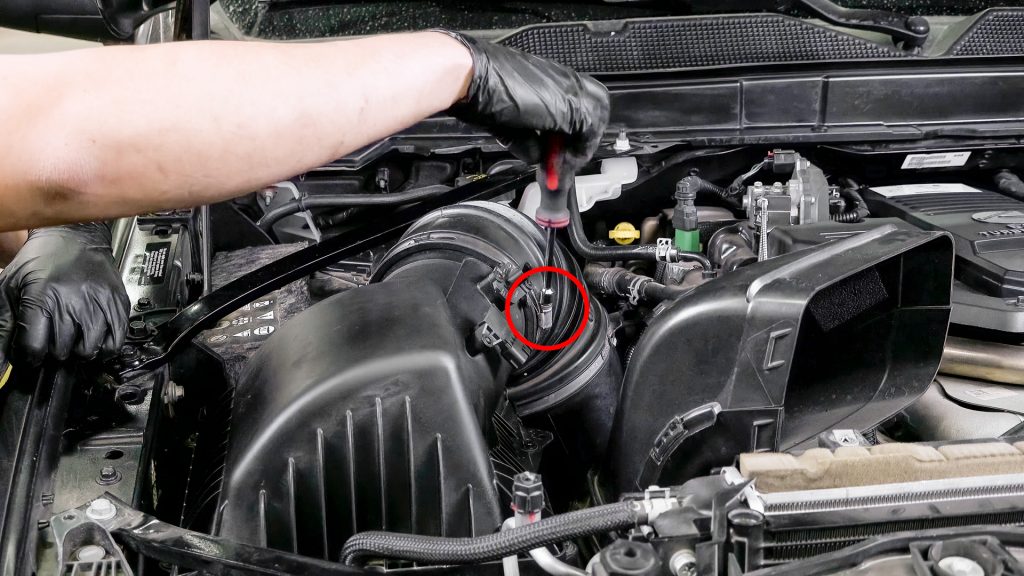

6. Detach the intake tube from housing
Use a 5/16” nut driver or screwdriver to loosen the hose clamp holding the intake tube onto the housing lid.

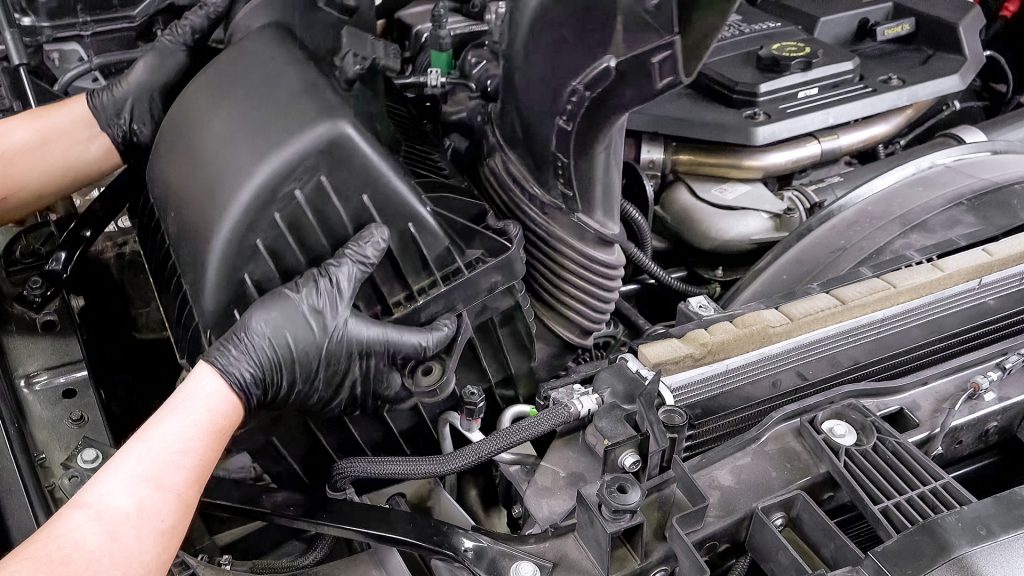

7. Remove housing and scoop
Pull the intake housing and scoop out of the engine bay.

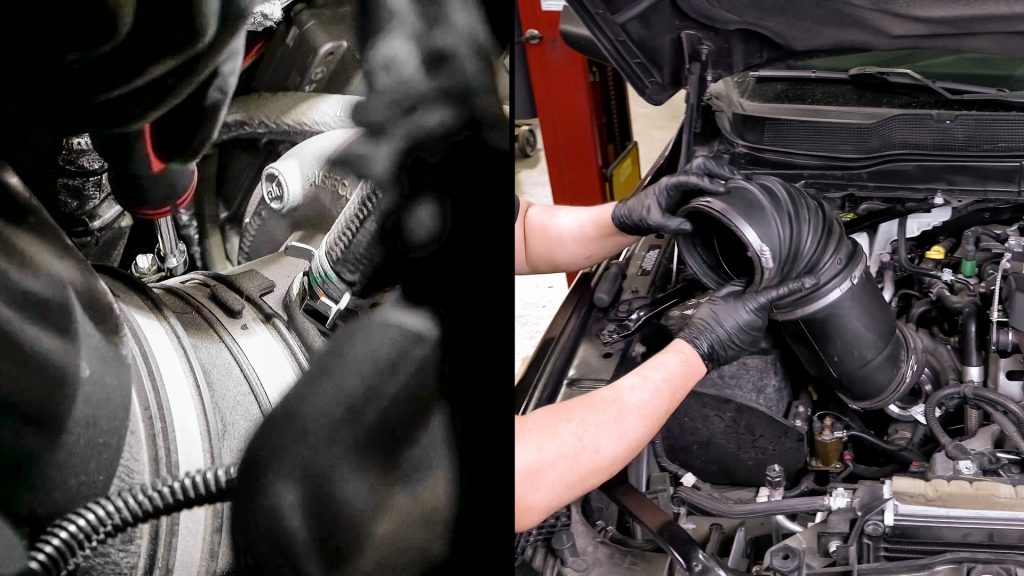

8. Remove the intake tube

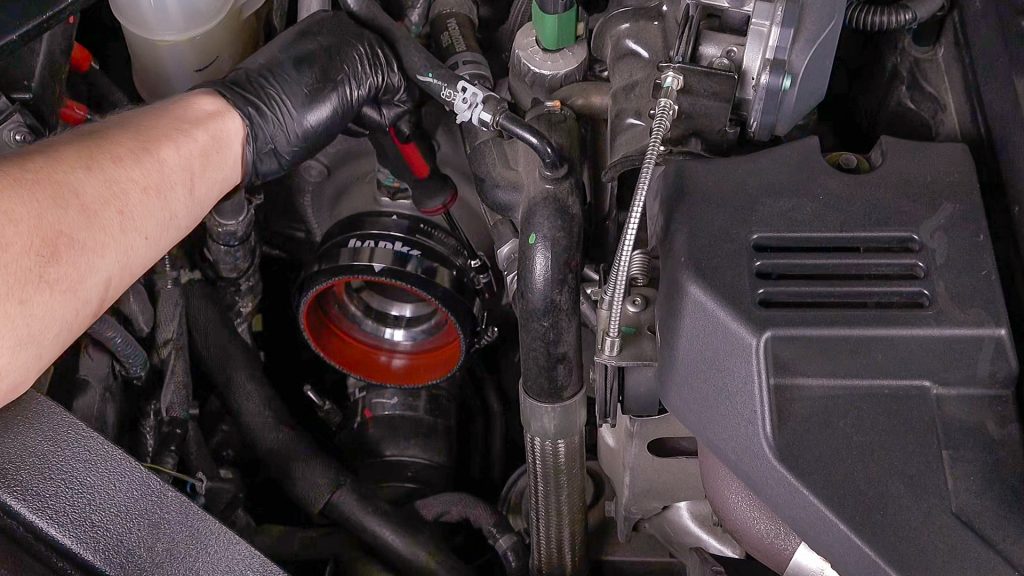

Loosen the hose clamp holding the intake tube onto the turbo. Use a 5/16” socket with an extension and ratchet or 5/16” nut driver.
Section 3: Installing the Banks Ram-Air Intake
9. Transfer the (MAF) and (TBAP) sensors onto the Banks tube.
Note: Use the supplied M4 screws and o-ring when installing sensors on the Banks Tube.

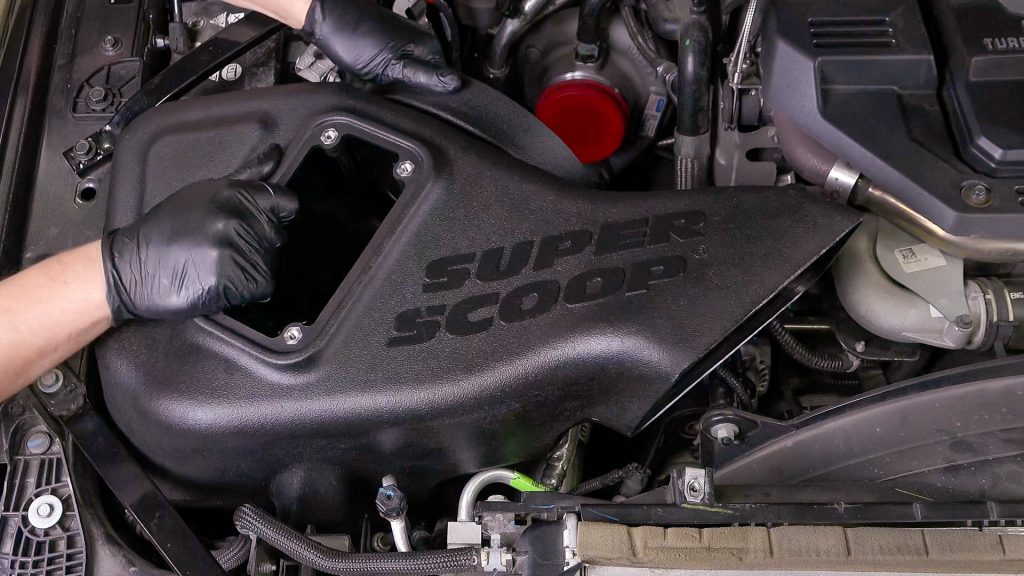

10. Transfer grommets to the Banks Ram-Air Intake housing.
There are three grommets that need to be transferred from the factory intake housing to the Banks Ram-Air Intake housing
11. Drop the housing into place.
Make sure that all three grommets are seated.

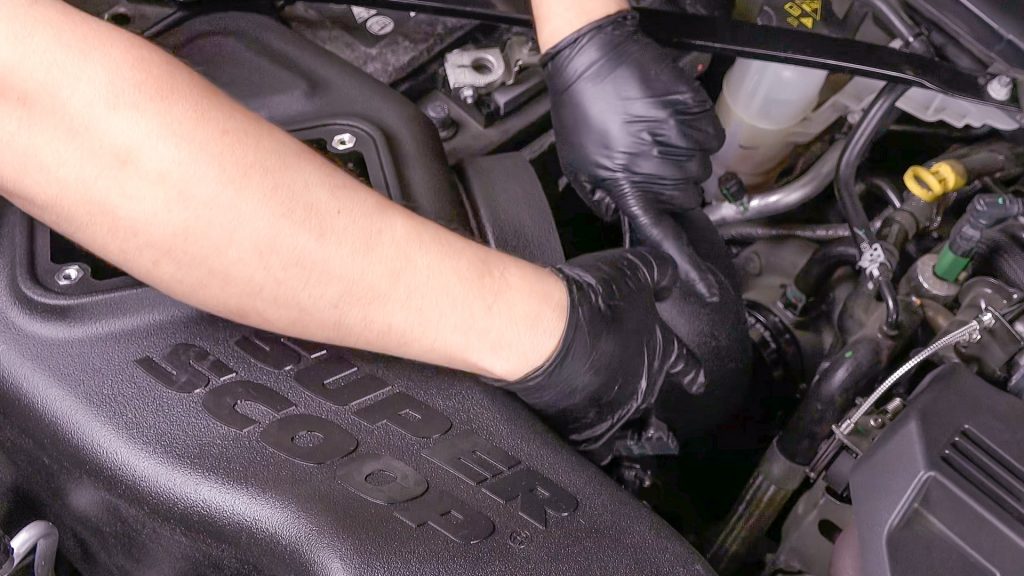

12. Attach hose to turbo.

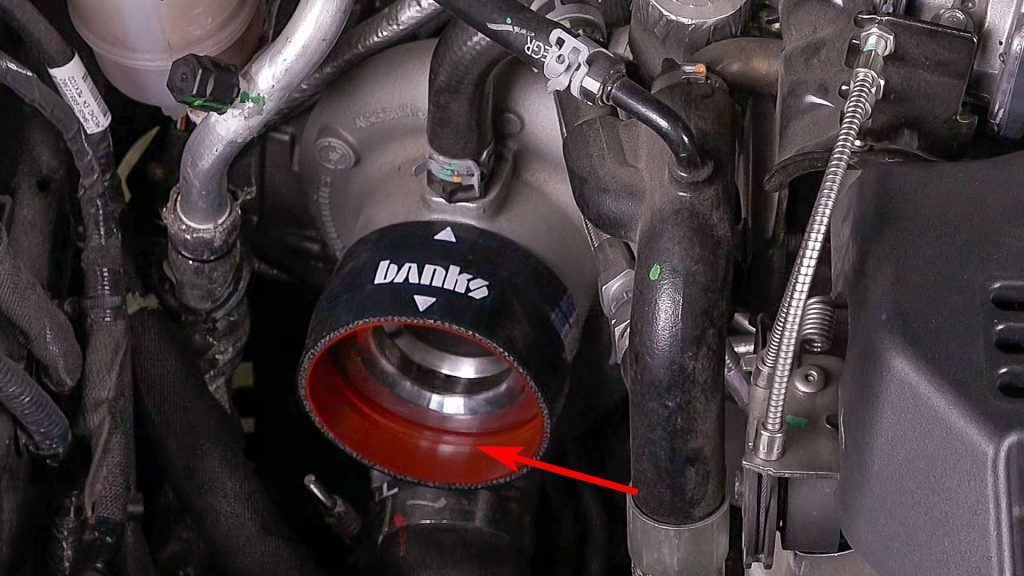

Slip the Banks hose onto the turbo with the arrow aligned to the breather hose on the turbo.
Note: Make sure the internal grove of the hose clears the end of the turbo inlet.
13. Slip clamps onto the hose.
Tighten the hose clamp on the turbo side. Leave the outer clamp loose.
14. Insert the Banks filter.
Insert filter into the Banks housing and place the large hose clamp over the filter cuff.
15. Slip the Banks intake tube into the filter cuff.
Do not tighten the clamp.
16. Slip the opposite end of the tube into the hose on the turbo.
Note: Make sure the alignment arrow on the hose, lines up with the dimple on the Banks intake tube.
17. Check the alignment of the tube:
a. The filter base should be parallel to the housing opening.
b. The sensors should have proper clearance.
18. Tighten the clamp on the Banks intake tube hose.
Check that the alignment arrows are still pointing at the dimple on the Banks intake & the breather hose on the turbo.

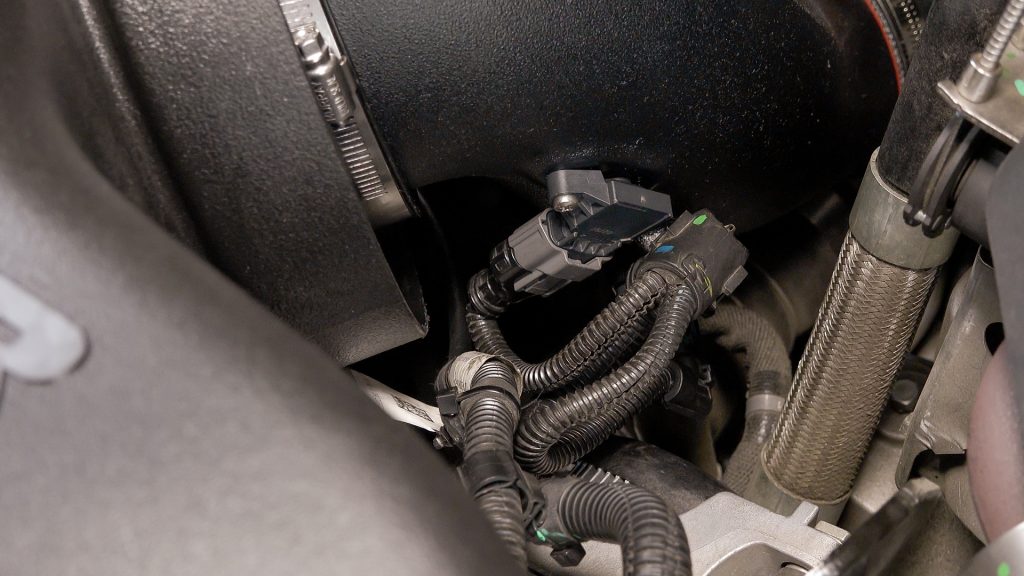

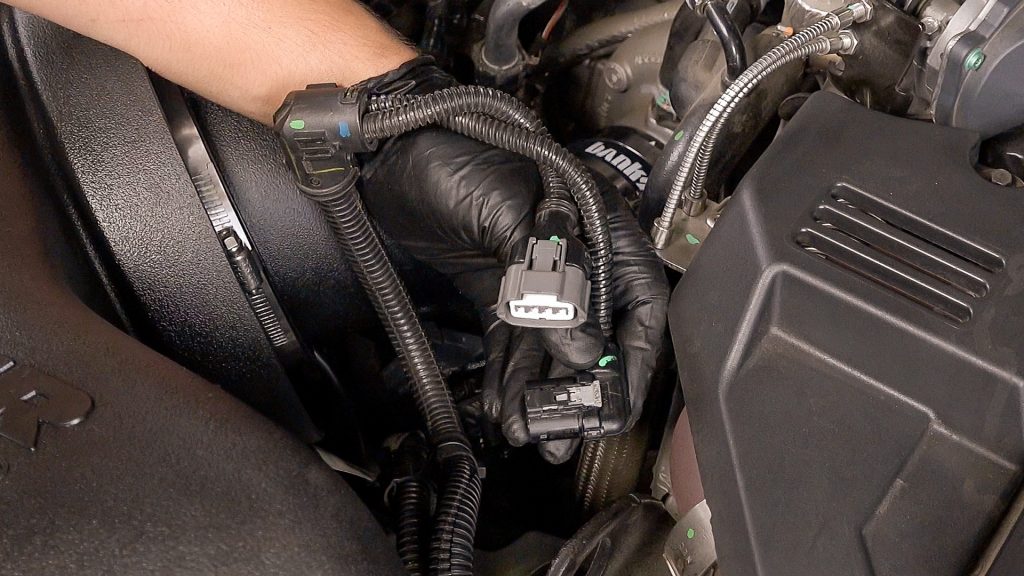

19. Plug in the MAF and IAT sensors.
20. Check harness clearance.
Make sure the sensor harness is tucked against the intake housing and away from moving parts.
21. Reinstall the factory scoop.
First, slide it over the Banks’ Super Scoop. Then, position it into place and reinstall the two bolts on either side of the scoop.
22. Reinstall the scoop cover.
Use the original clips.

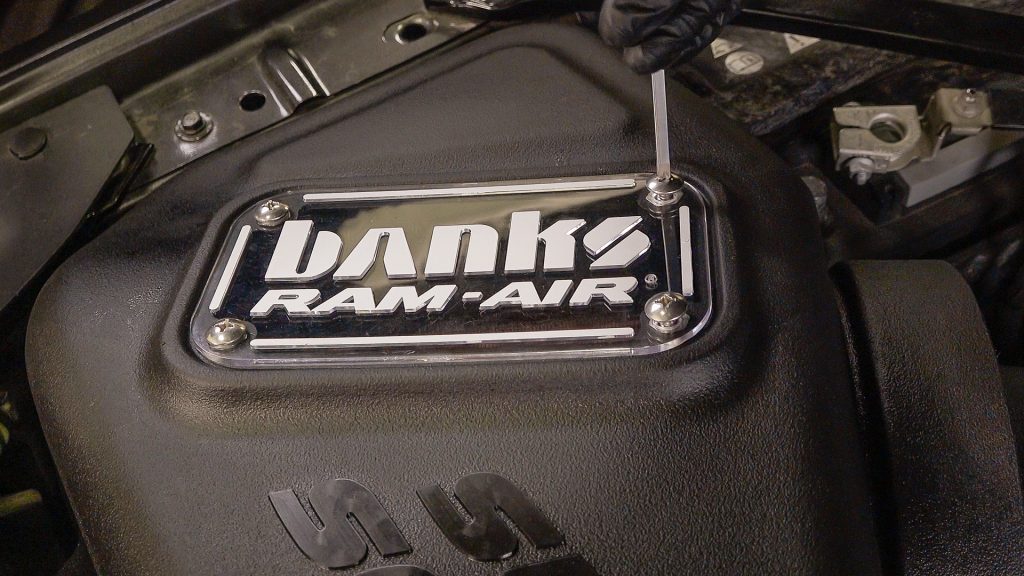

23. Install the Banks window onto the housing.
Use the supplied thread locker with the four Philips head screws.
Note: Do not over-tighten the screws. They should only be snug. The thread locker will prevent them from coming loose.
24. Re-connect negative Battery Terminals.
Verify terminals are attached firmly to prevent corrosion or electrical faults.
Start your truck and enjoy your new Banks Power Ram-Air intake.
