Cam Measure


Please read through the following instructions thoroughly before starting your installation. If you have any questions please visit our Support Page.

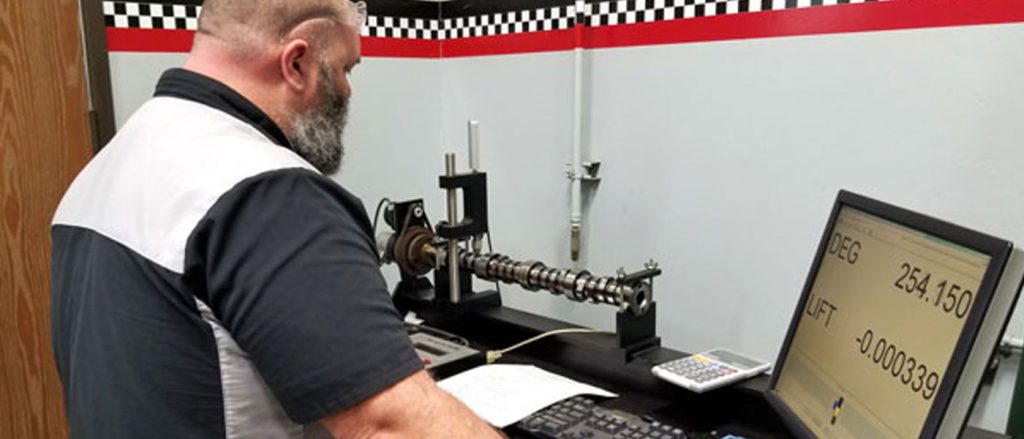

Banks Master Engine Builder Mike, seen here, is measuring cam profiles on a new diesel race cam using the shop’s Cam Pro Plus software and sensor. Doing so allows him to double-check the cam and verify whether or not the numbers are legit, which in the long run will save a lot of time when it comes to tuning. Running a cam under this process will also tell you what top dead center (TDC) lift is at any amount of advance or retard. The system is also a good tool for measuring duration, opening, closing, centerline, lobe separation, and cam factor.
