97776 Banks Ram-Air Cold Air Intake System for 2019-2024 Ram 2500/3500 6.7L Cummins

INSTALL INSTRUCTIONS
Part #s 42279 & 42279-D

Banks Ram-Air® Intake System 2019-2024 Ram 2500/3500 6.7L Cummins

Please read through the following instructions thoroughly before starting your installation. If you have any questions please visit our Support Page.

Section 1: General Assembly

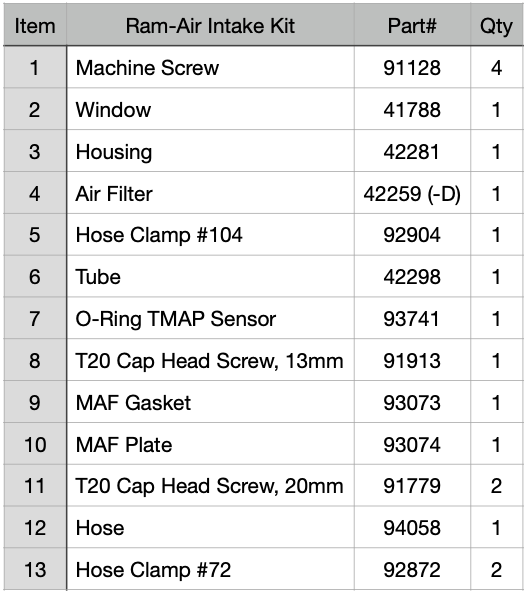

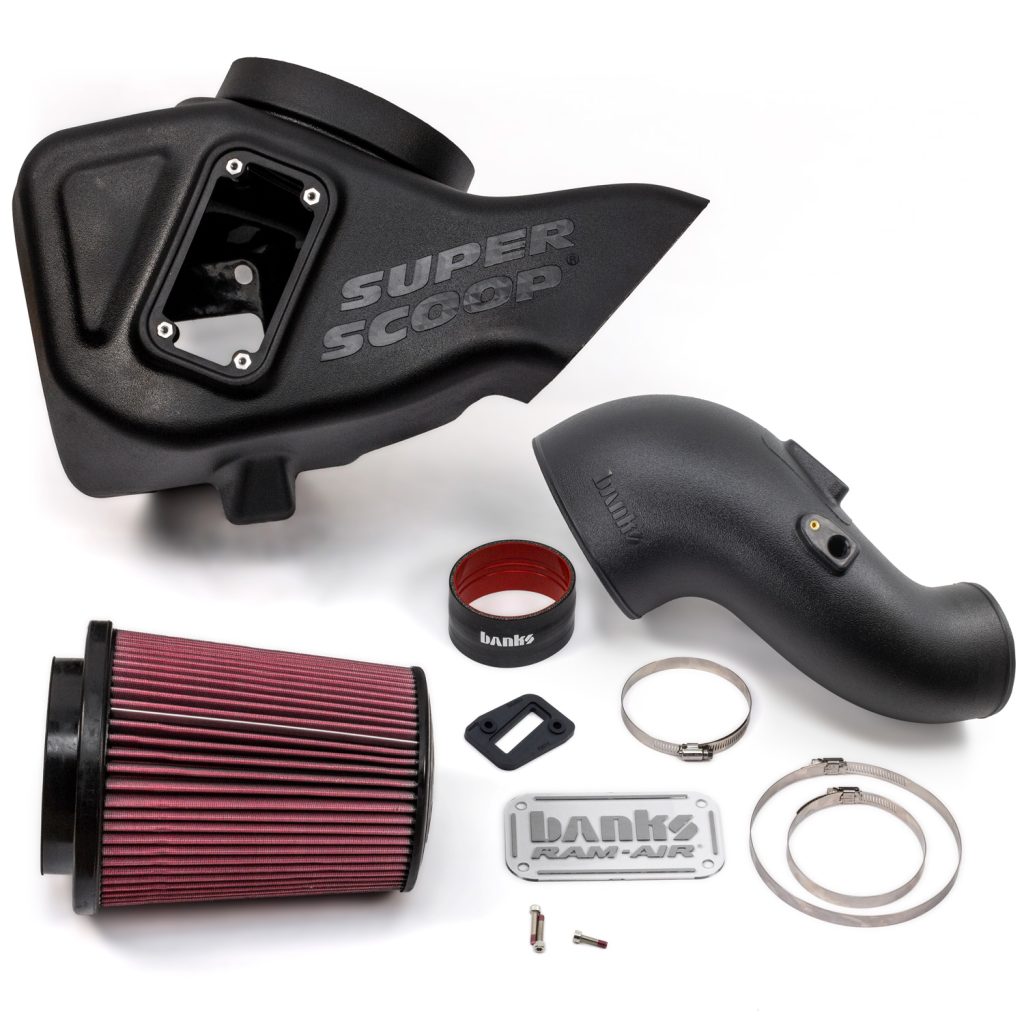

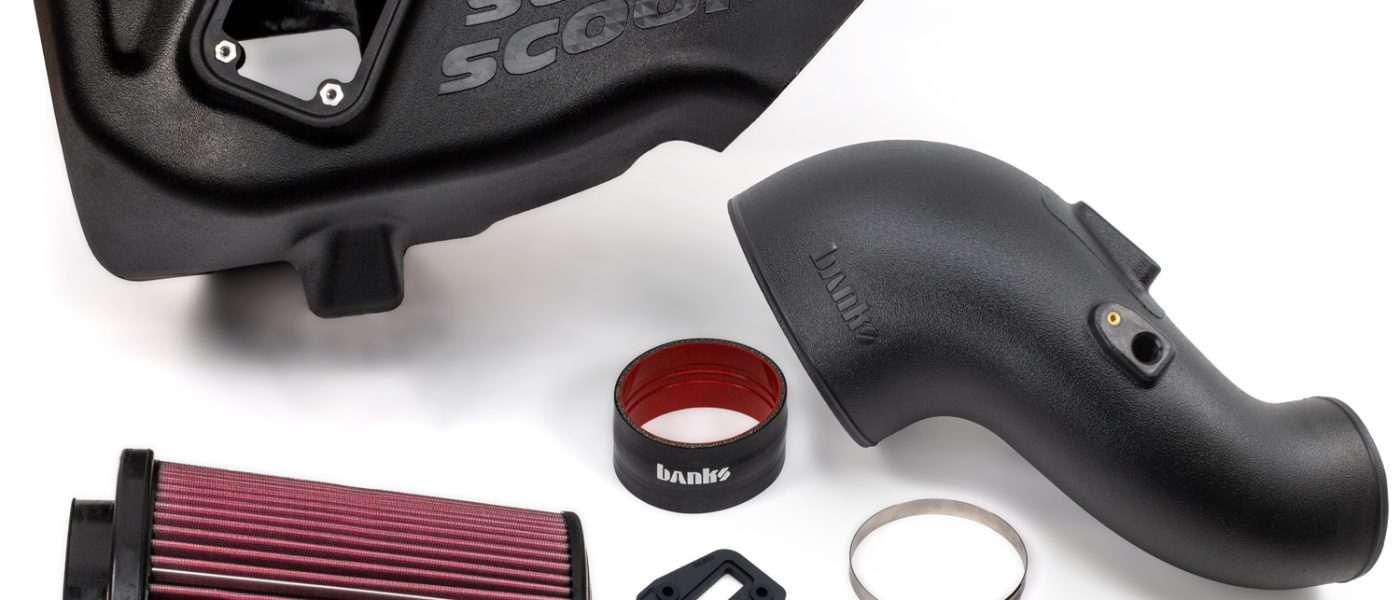

Bill of Materials

General Installation Practices - Show

1. For ease of installation of your Banks Ram-Air system, familiarize yourself with the procedure by reading the entire manual before starting work.

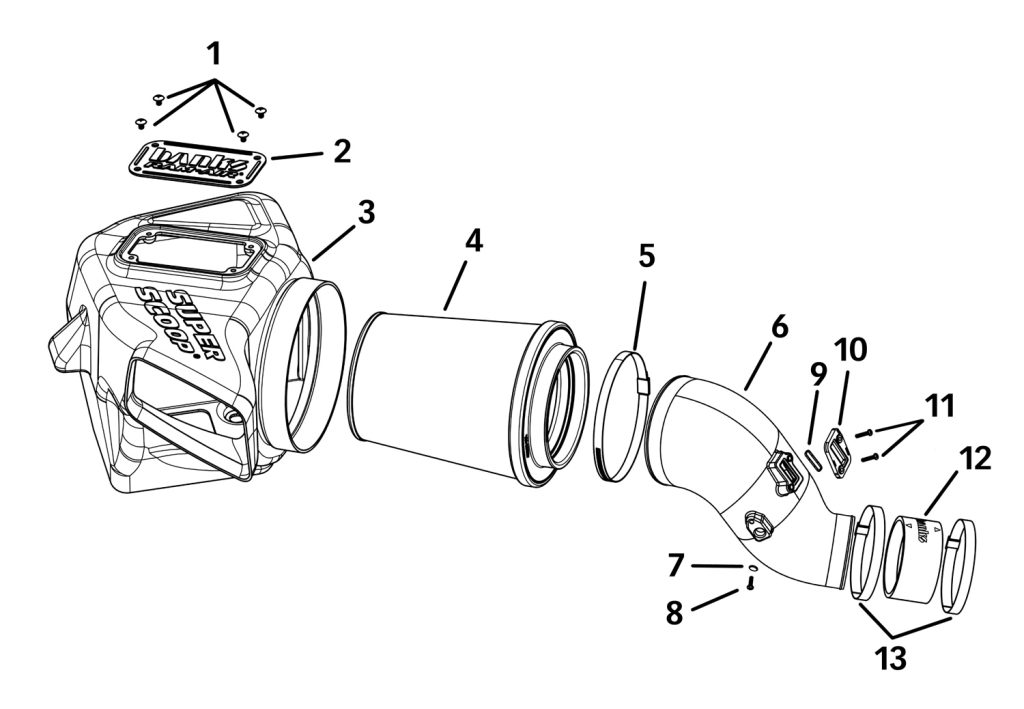

2. The exploded view of the Banks Ram-Air assembly provides only general guidance. Refer to each step and section diagram in this manual for proper instruction.

3. Throughout this manual, the left side of the vehicle refers to the driver’s side and the right side to the passenger’s side.

4. Disconnect the ground cable(s) from the battery(s) before beginning work.

If there are two batteries, disconnect both.

5. Route and tie wires and hoses

Maintain a minimum of six inches distance from exhaust heat, moving parts, and sharp edges. Clearance of eight inches or more is recommended where possible.

6. During installation, keep the work area clean.

If foreign debris are transferred to any Banks component, clean it thoroughly before installing.

7. When raising the vehicle, support it on properly weight-rated safety stands, ramps, or a commercial hoist.

Follow the manufacturer’s safety precautions. Take care to balance the vehicle to prevent it from slipping or falling. When using ramps, be sure the front wheels are centered squarely on the topsides; put the transmission in park; set the parking brake; and place blocks behind the rear wheels.

CAUTION:

Do not use floor jacks to support the vehicle while working under it. Do not raise the vehicle onto concrete blocks, masonry, or any other item not intended specifically for this use.

WARNING:

Vehicles that come with a Vehicle Emissions Control Information (VECI) label affixed to the Original Equipment Manufacturer’s (OEM) air intake system airbox must replace the VECI label when installing a Banks Ram-Air^® Intake System. A missing VECI label will prevent the vehicle from passing a smog inspection. A replacement VECI label can be obtained from the dealership. Replacement VECI labels must be in a location that is readily visible, on a painted surface in the engine bay, and shall not be affixed to any equipment that is easily detached from the vehicle.

Tools Required:

10mm Socket
5/16″ Socket
Ratchet Extension
1/4″ Ratchet
Philips Screw Driver
Flat Head Screw Driver

Recommended:
Plastic Panel Popper Tool
5/16″ Nut Driver

Section 2: Stock Intake Tube Removal

Use caution when working in the engine compartment. Make sure the engine has been OFF for several hours and cool. Some components from the stock air intake system will remain in service. Take care when removing stock air intake components to not damage them.

1. Disconnect negative battery cables. (both batteries)

NOTE: Wait for 15 minutes before proceeding to allow the ECM to fully discharge.

Disconnecting sensors before the ECM is fully powered down can result in Check Engine Codes or starting in “Limp Mode” after install is complete.

2. Remove OEM intake scoop cover

There are 12 plastic clips. Use a plastic panel popper tool to avoid damage to the cover.

Note: 2 are located behind the scoop.

Save the clips to be reused.

3. Disconnect the two sensors located on the intake housing lid.

a. First slide the harness clip free from the housing lid.

b. Then pull the retainer clip holding the harness to the scoop using a panel popper.

c. Pull the harness clear of the intake.

4. Detach the OEM scoop from the truck

Remove the two bolts on either side of the scoop. Use a 10mm socket and ratchet.

5. Separate scoop from the intake housing.

Note: The scoop will be reused with the Banks Ram-Air system.

6. Detach the intake tube from housing

Use a 5/16” nut driver or screwdriver to loosen the hose clamp holding the intake tube onto the housing lid.

7. Remove housing and scoop

Pull the intake housing and scoop out of the engine bay.

8. Remove the intake tube

Loosen the hose clamp holding the intake tube onto the turbo. Use a 5/16” socket with an extension and ratchet or 5/16” nut driver.

Section 3: Installing the Banks Ram-Air Intake

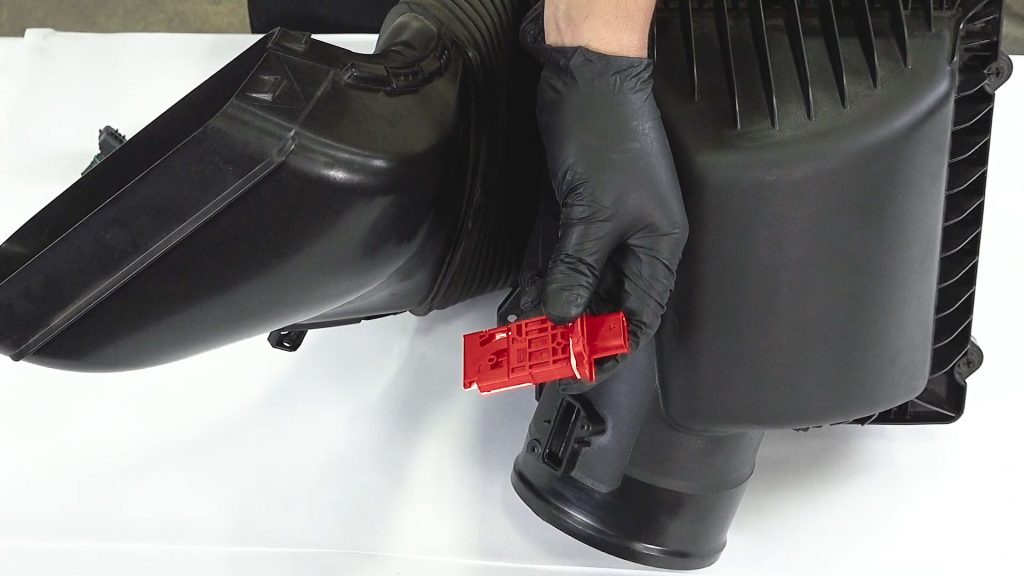

9.Remove the MAF sensor from the factory housing.

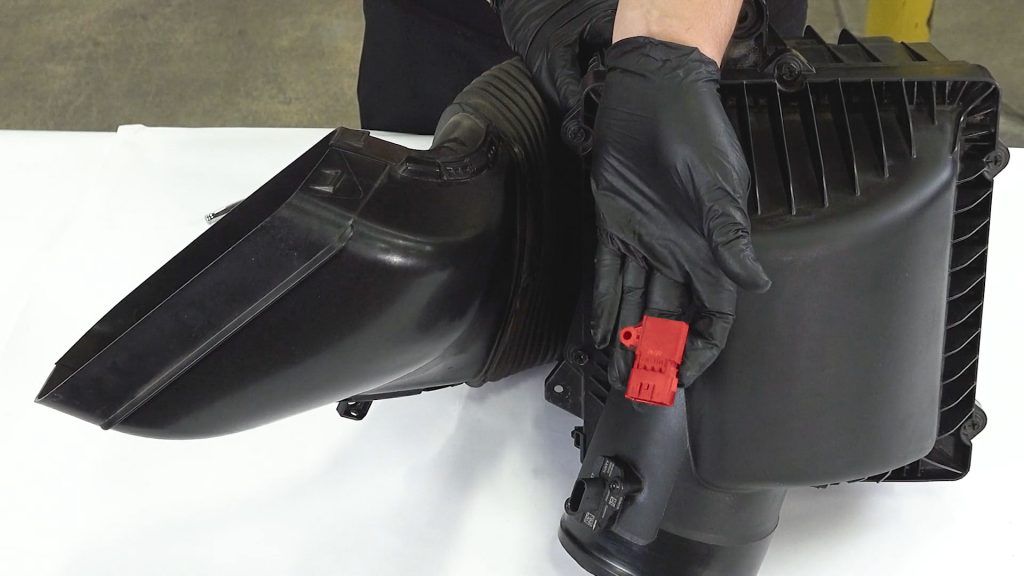

Remove the MAP sensor from the factory housing.

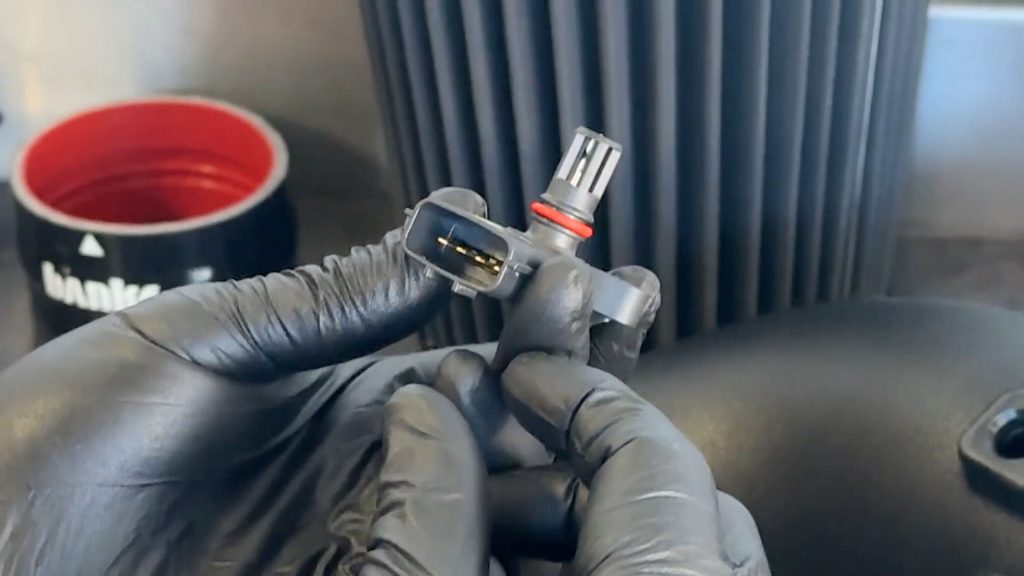

10. Remove the old O-Ring from the factory MAP sensor

Swap it with the new Banks supplied O-ring.

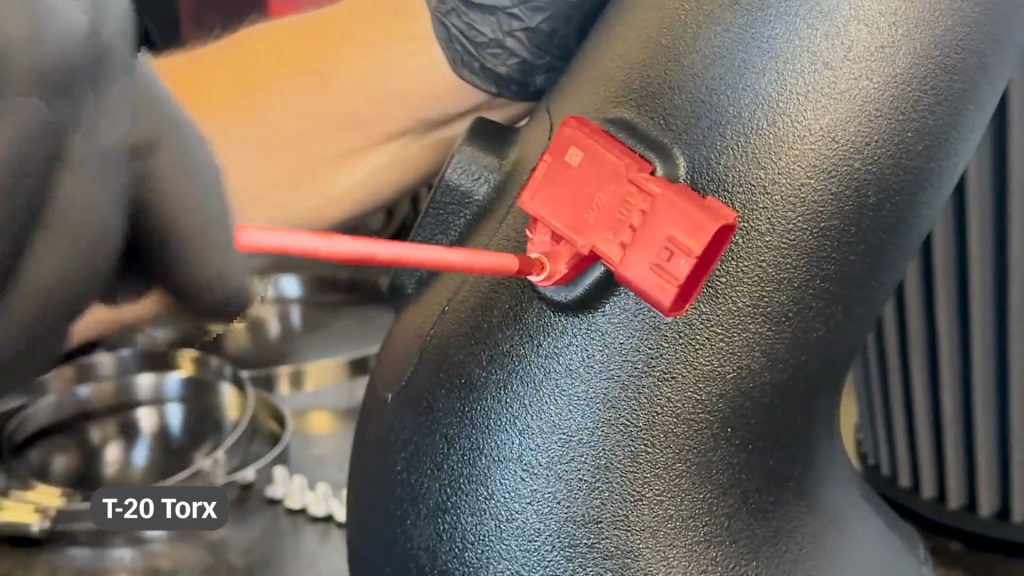

11. With a T20 Torx bit, install the MAP sensor with the shorter of the 3 supplied Torx screws.

12. Put the Banks-supplied gasket into the MAF spacer plate.

13. Notice there is an arrow on both the MAF sensor and the MAF spacer plate.

14. Insert the MAF sensor into the plate; these two arrows should face the same direction.

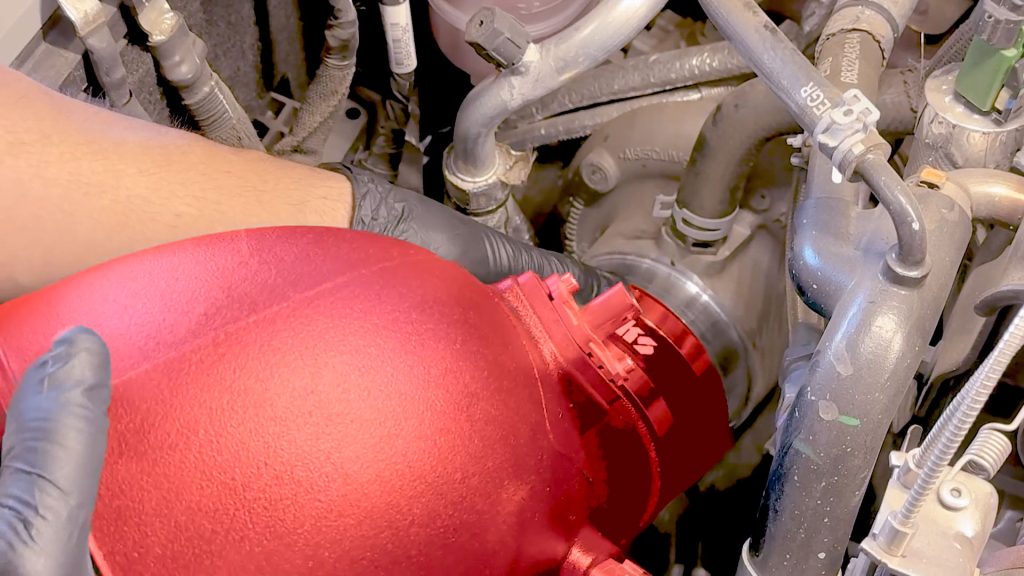

15. Insert both into the new Banks tube, the arrows should be pointing towards the turbo.

Secure the MAF sensor with the two longer T20 Torx screws.

16. Slide the hose onto the Intake tube. The shorter side should face towards the tube, and the longer side towards the turbo inlet.

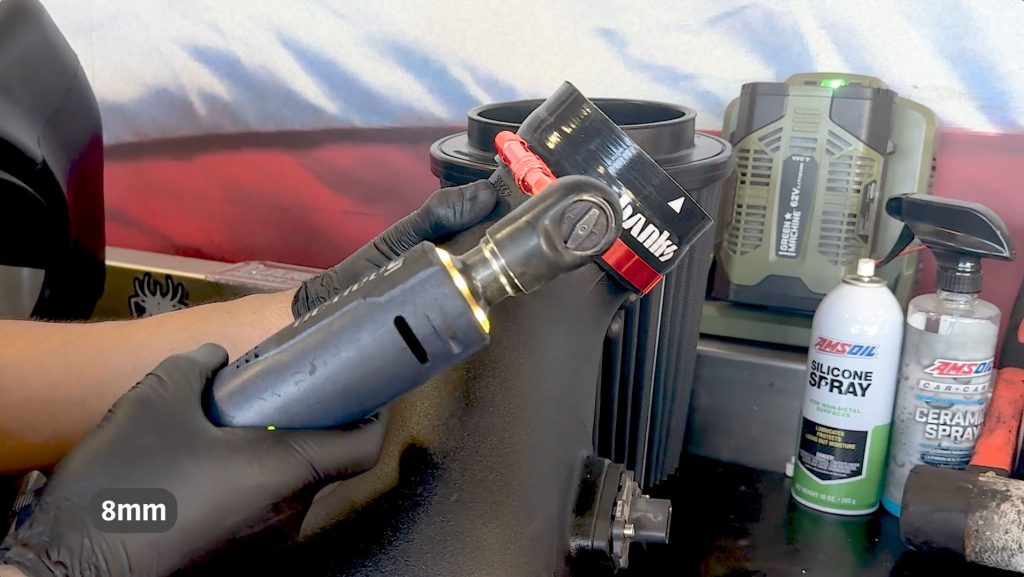

17. With an 8mm socket, tighten the hose with a hose clamp.

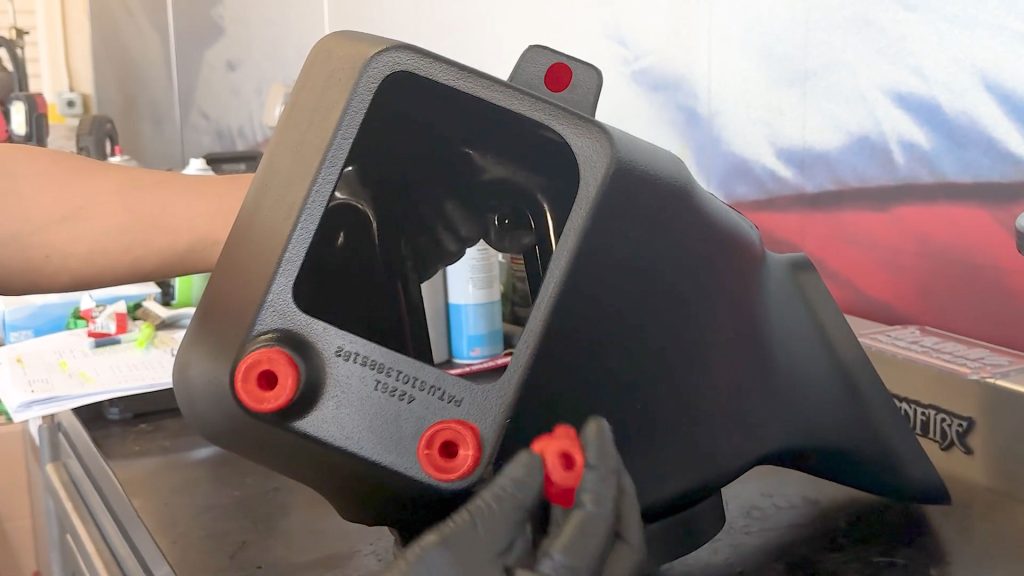

18. Swap the 3 rubber grommets from the factory intake, and swap them into the Banks intake box.

19. Place another hose clamp on the end of the tube, and slide the hose onto the turbo inlet until it lines up with the groove.

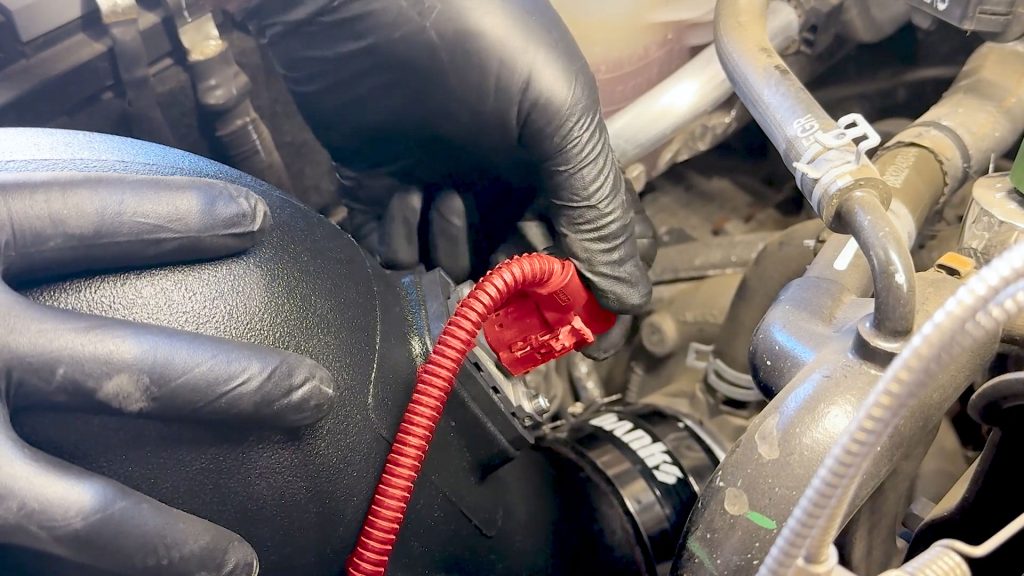

20. Plug in the MAF sensor to the factory harness.

21. Lock the sensor tab and secure it with the plastic cover.

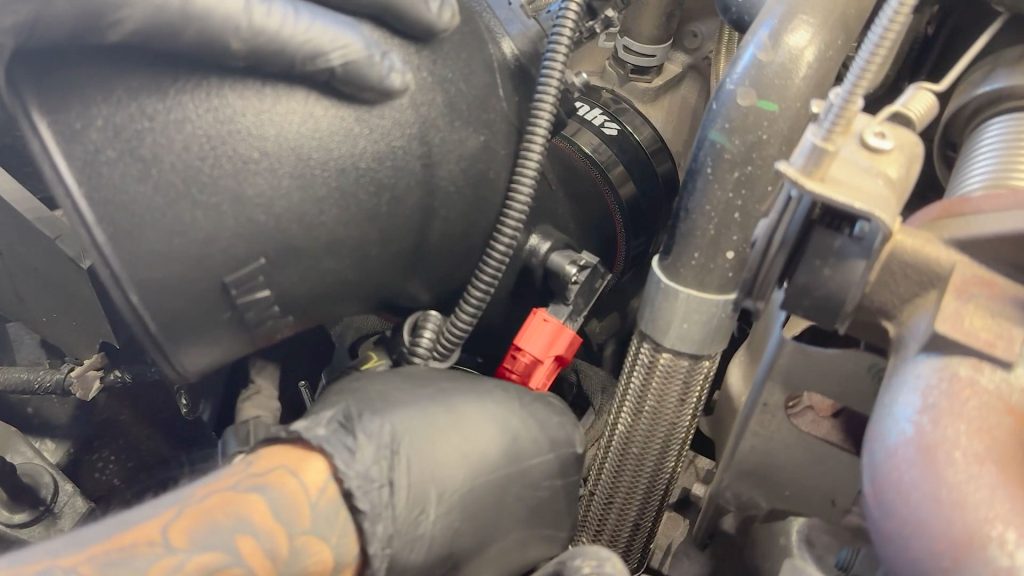

22. Plug in the MAP sensor to the factory harness.

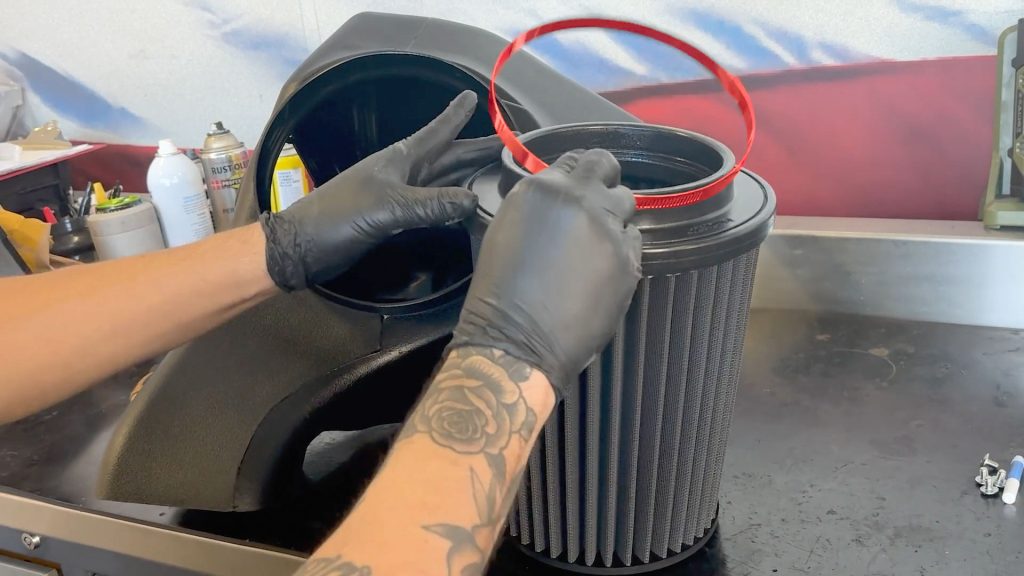

23. Slip the large hose clamp over the collar of the Ram-Air filter.

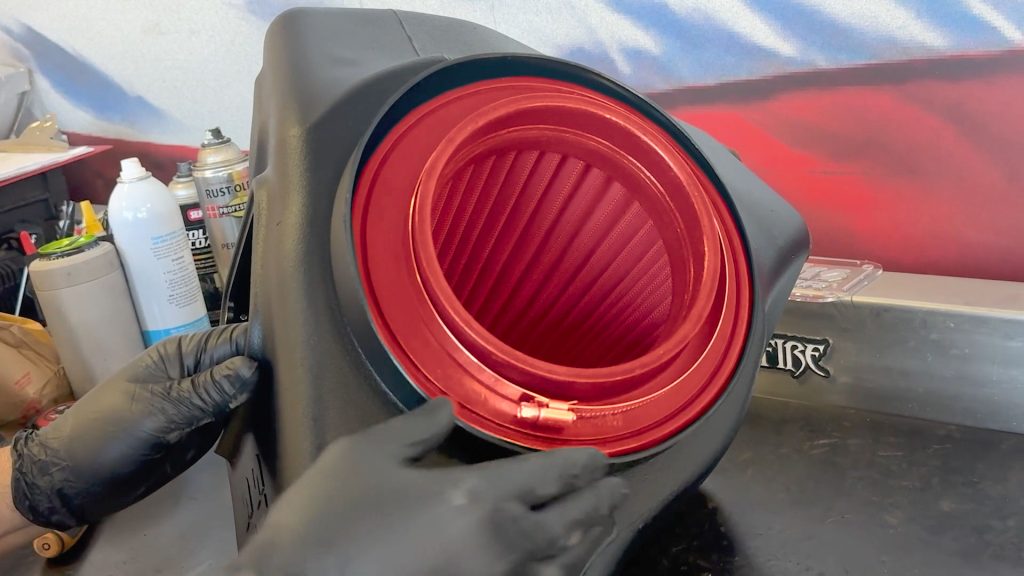

24. Slip the filter into the Ram-Air intake housing.

25. Drop the housing into place.

Make sure that all three grommets are seated.

26. Slip the Banks intake tube into the filter cuff.

Do not tighten the clamp.

27. Reinstall the factory scoop.

First, slide it over the Banks’ Super Scoop. Then, position it into place and reinstall the two bolts on either side of the scoop.

28. Reinstall the scoop cover.

Use the original clips.

29. Tighten the clamp on the Banks Ram-Air Filter.

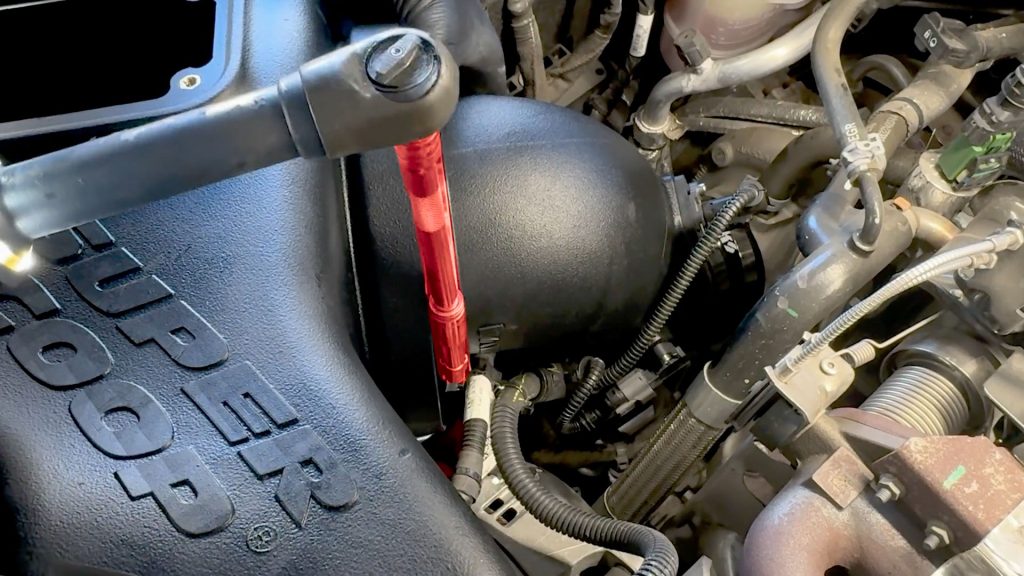

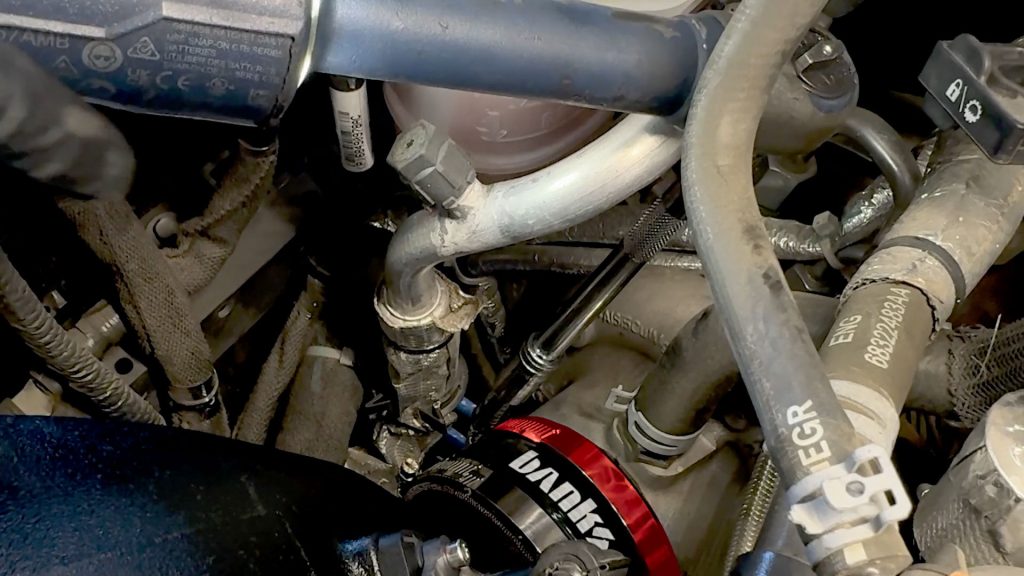

30. Tighten the clamps on the end of the intake tube.

23. Install the Banks window onto the housing.

Use the supplied thread locker with the four Philips head screws.

Note: Do not over-tighten the screws. They should only be snug. The thread locker will prevent them from coming loose.

24. Re-connect negative Battery Terminals.

Verify terminals are attached firmly to prevent corrosion or electrical faults.

Start your truck and enjoy your new Banks Power Ram-Air intake.

INSTALL INSTRUCTIONS Part #s 42279 & 42279-D
