97732 2023-2025 Chevy/GMC Colorado & Canyon Stealth Pod Installation Guide

1. Before starting the installation, use your 10mm socket to remove the negative terminal on the battery.

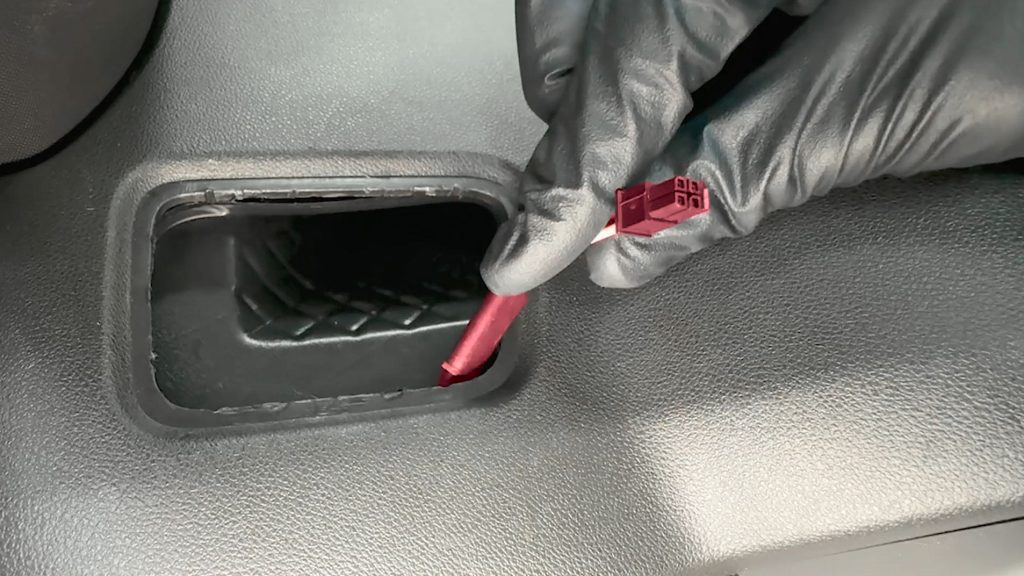

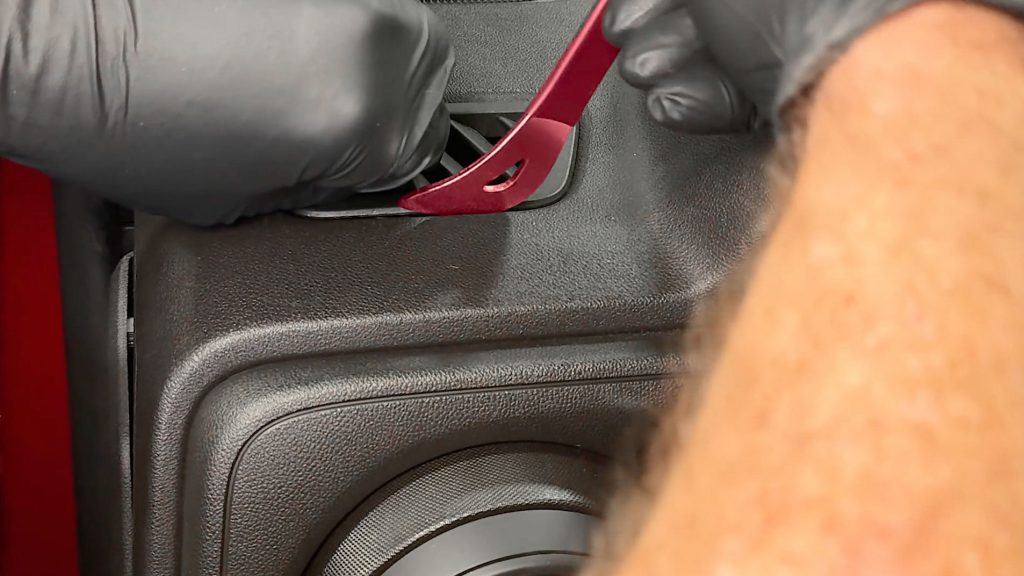

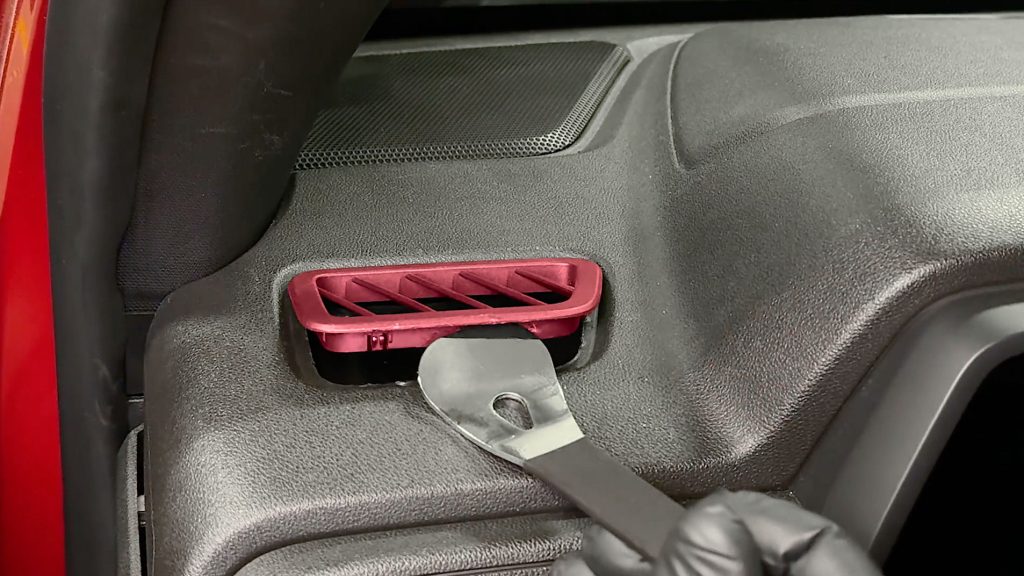

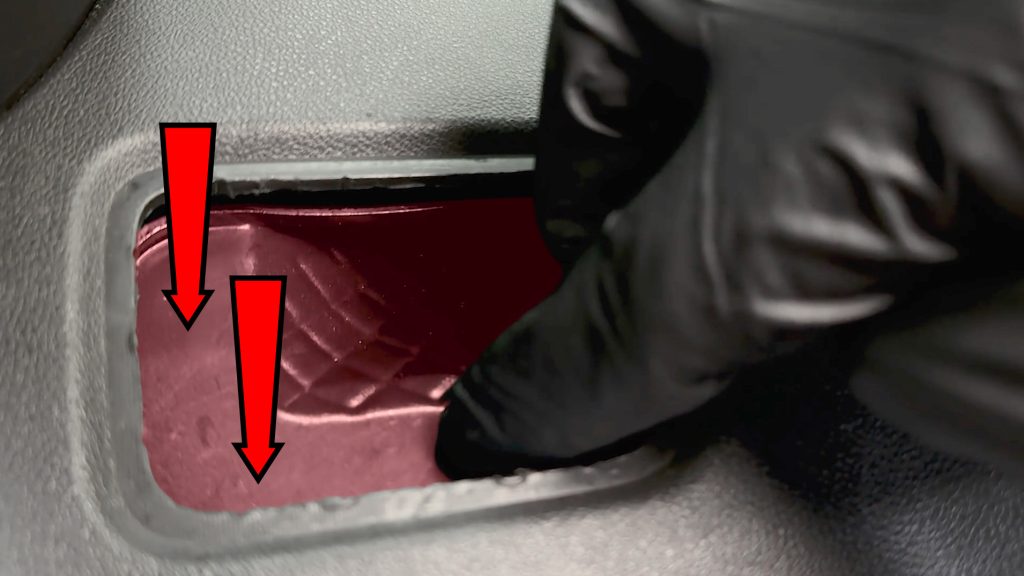

2. With the included plastic pry tool, pop off the driver-side window defroster vent.

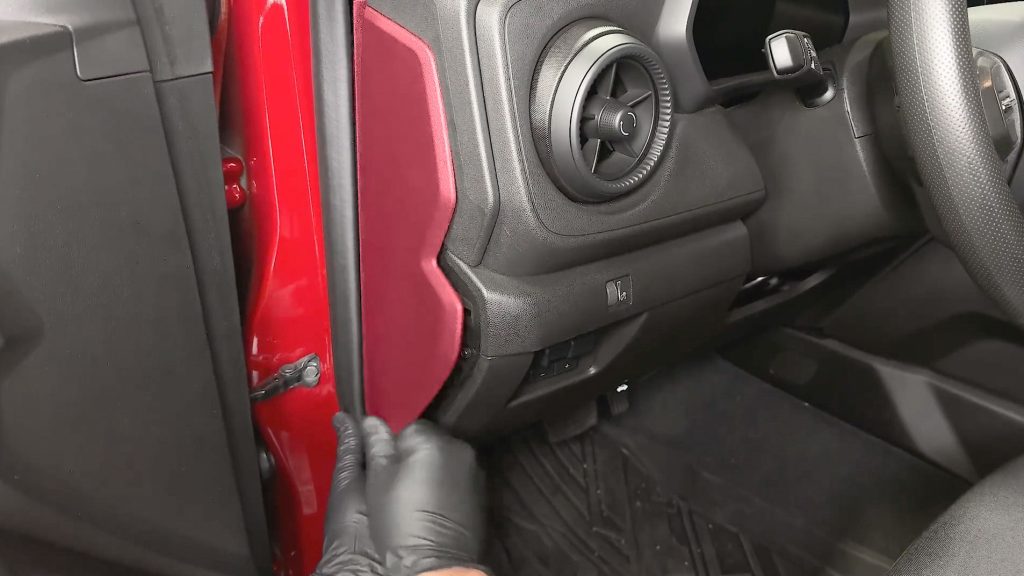

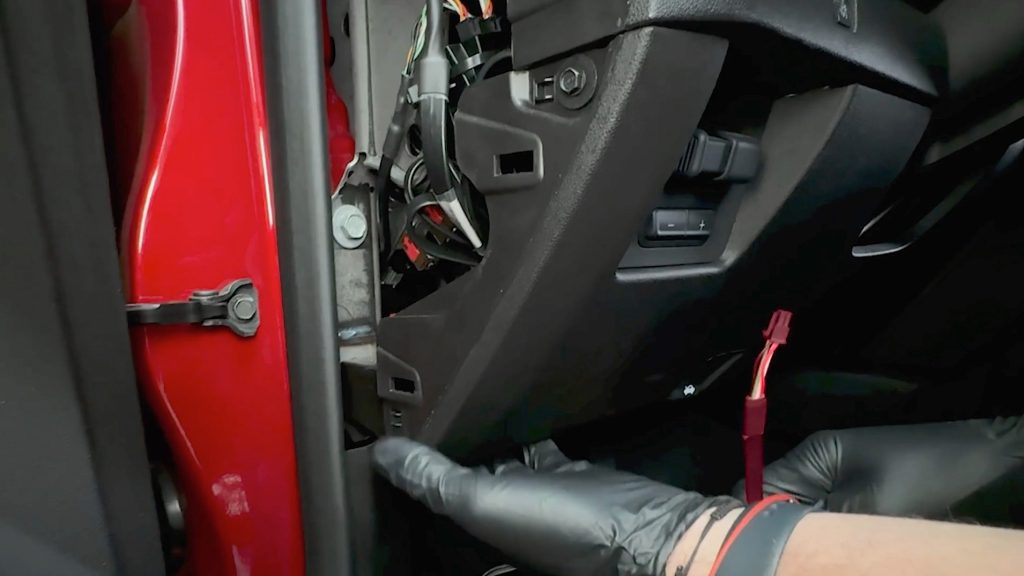

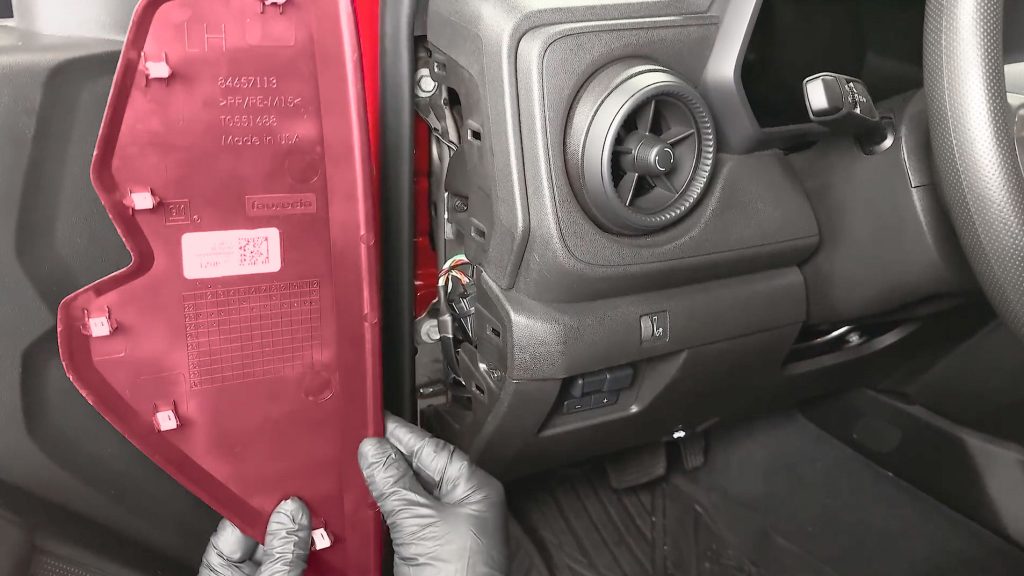

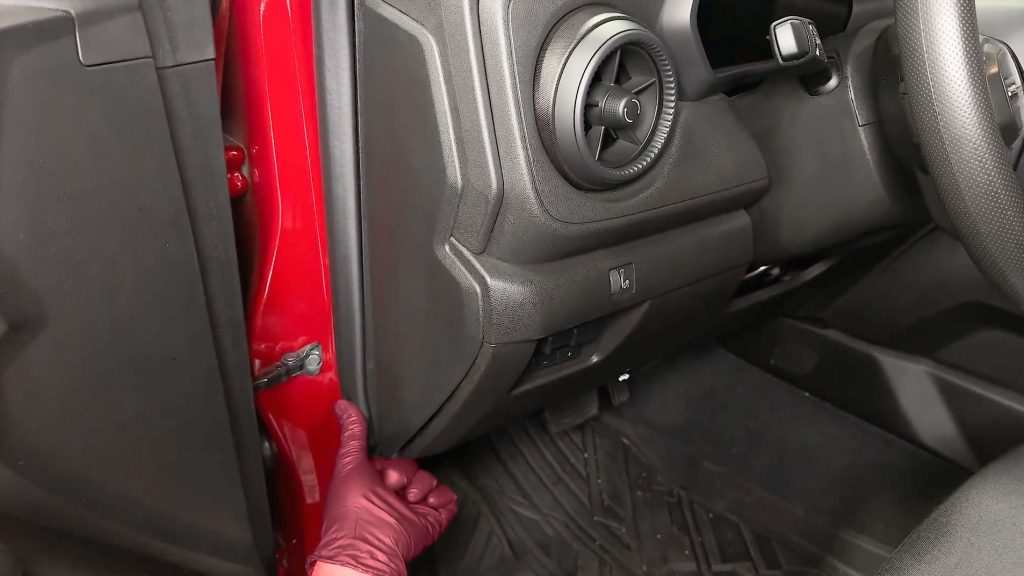

3. Locate and open the access panel to the left of the steering wheel with a plastic pry tool.

This will provide extra access to route your OBD-II and data cables.

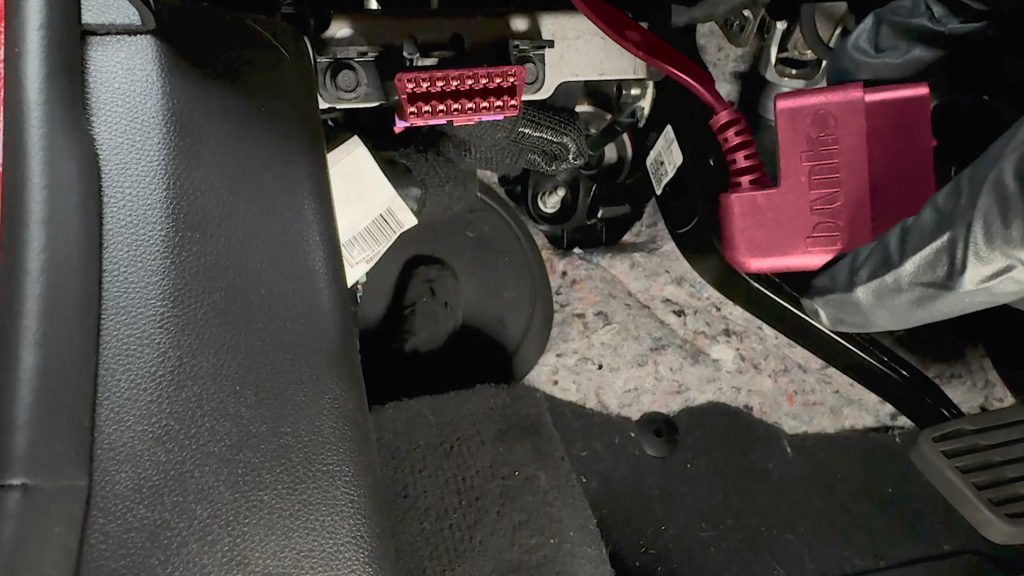

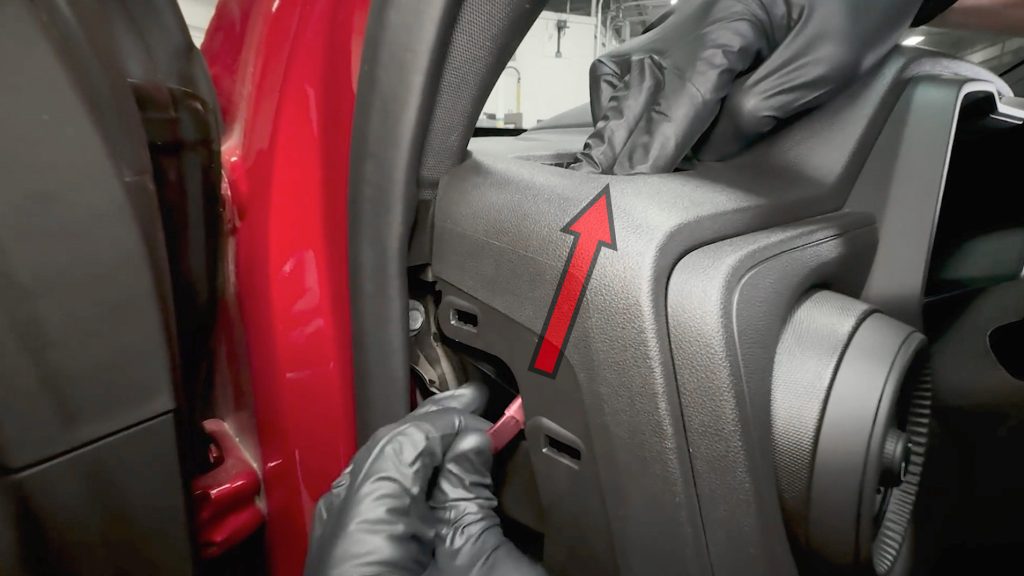

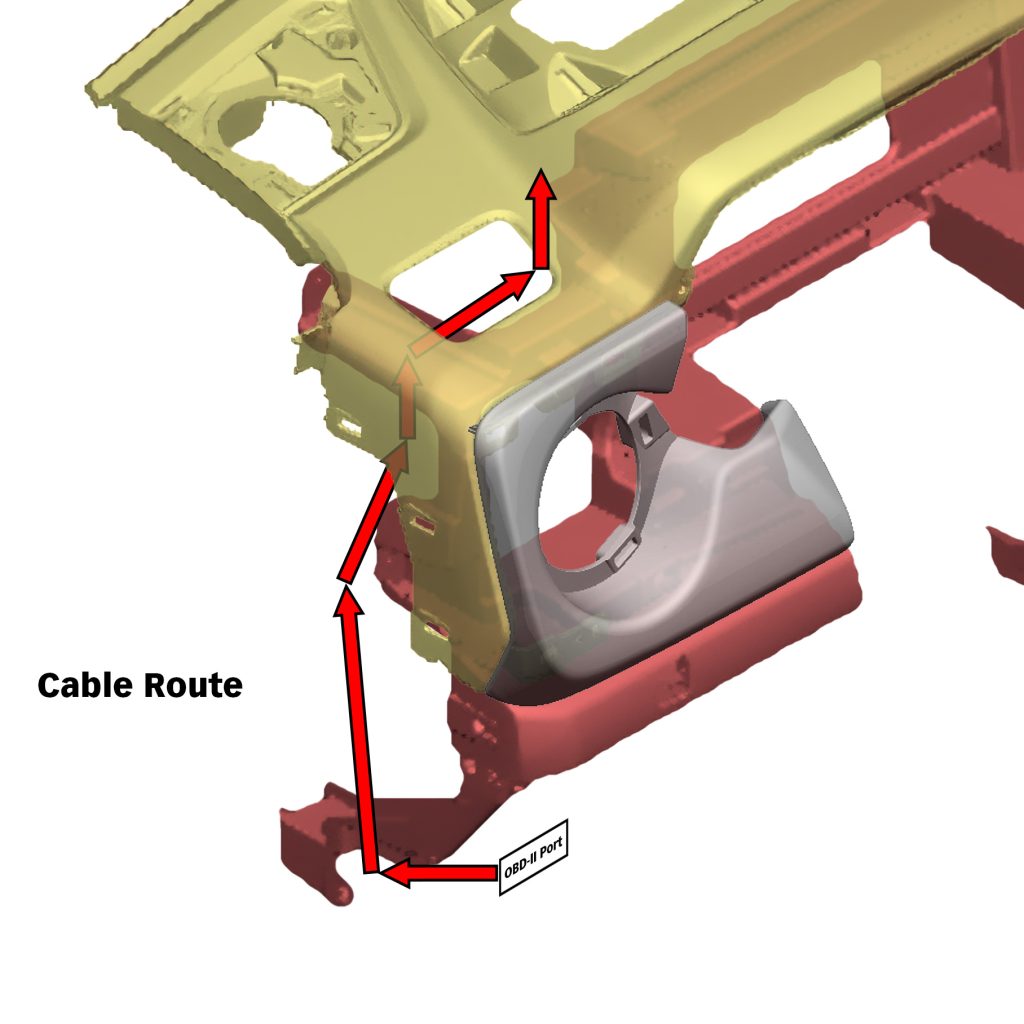

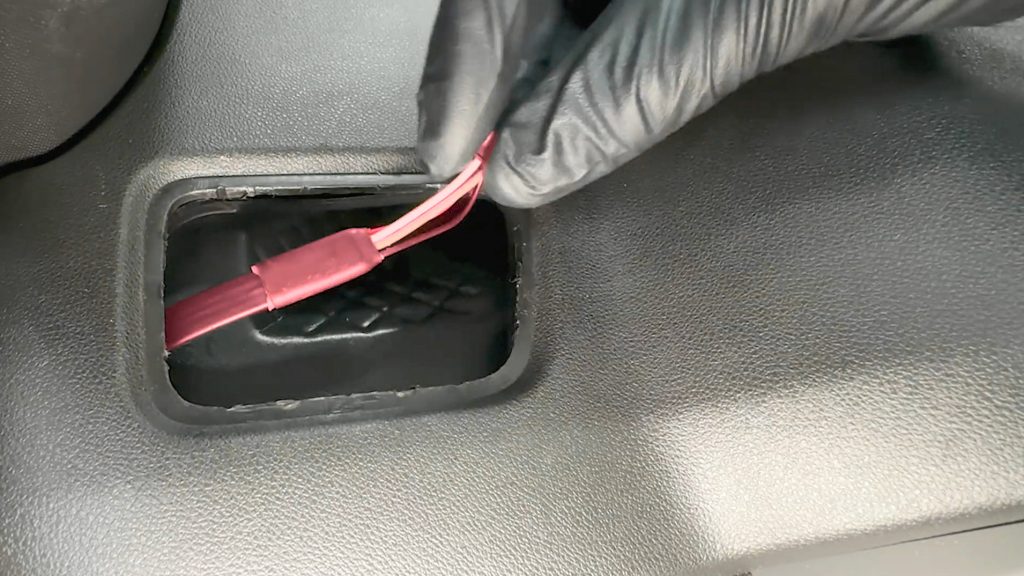

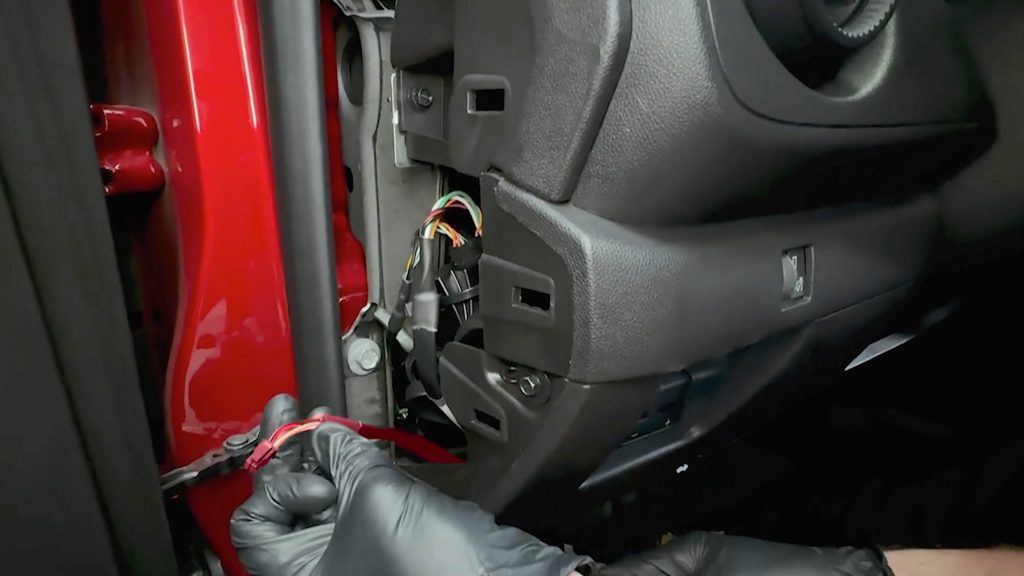

4. Run the Banks OBD-II cable from the bottom and up through to the top of the dashboard.

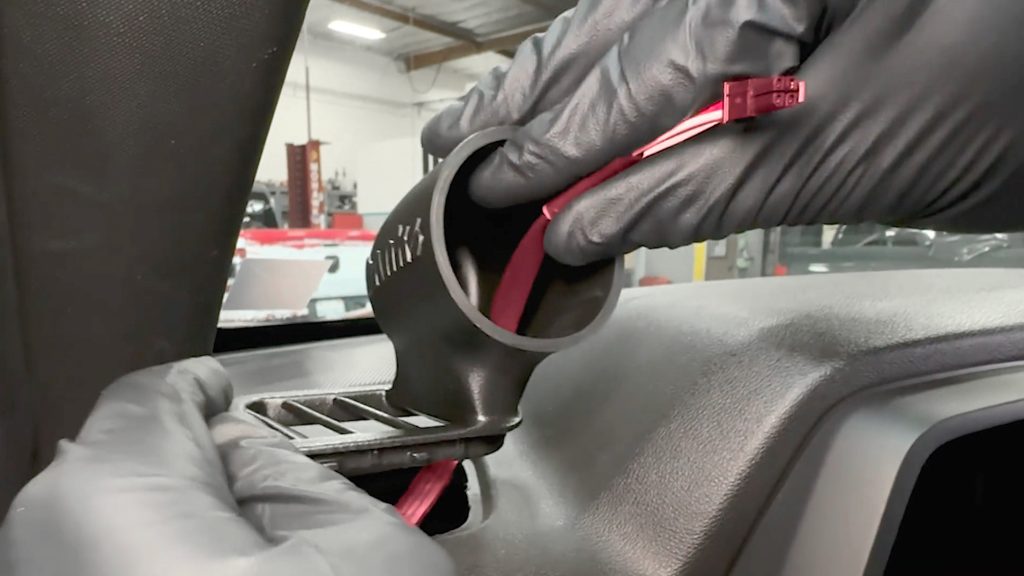

5. Thread cable(s) through the cable access hole in the stealth pod.

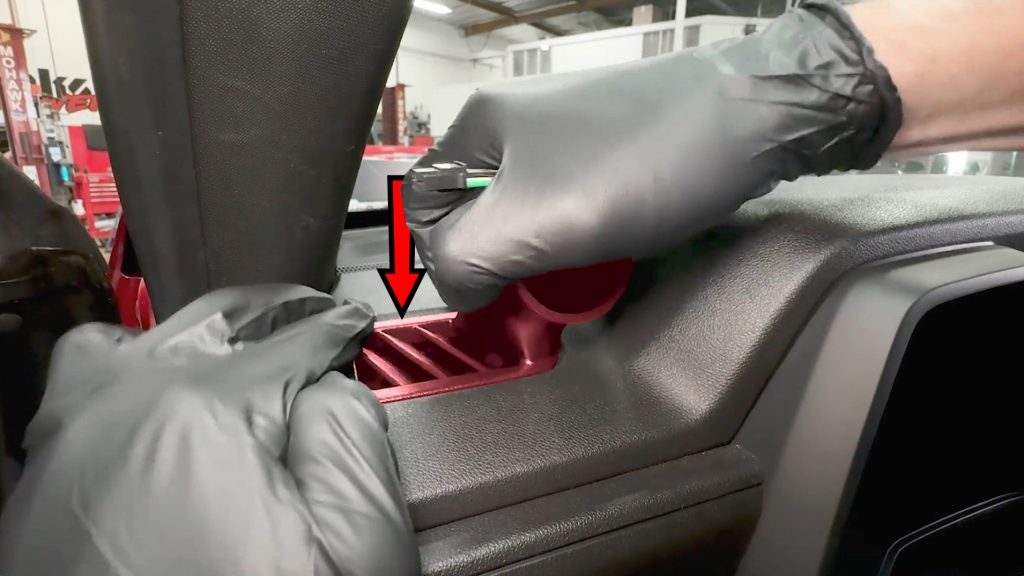

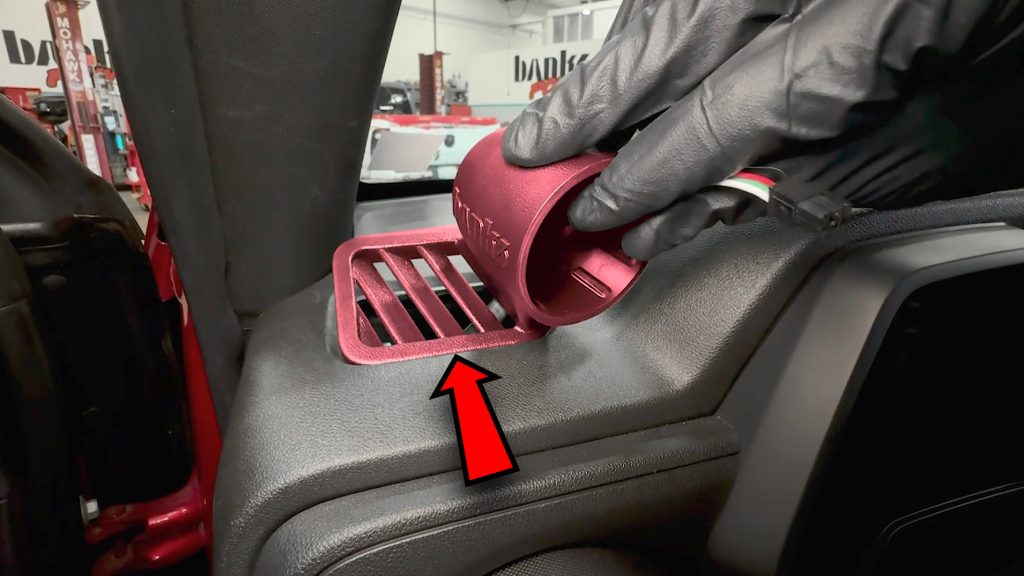

Snap the Stealth Pod into place on the dashboard. Check that all the locking tabs around the base are fully seated and that the Stealth Pod is secure. Be sure there is extra slack to reach through the Stealth Pod and connect to the iDash.

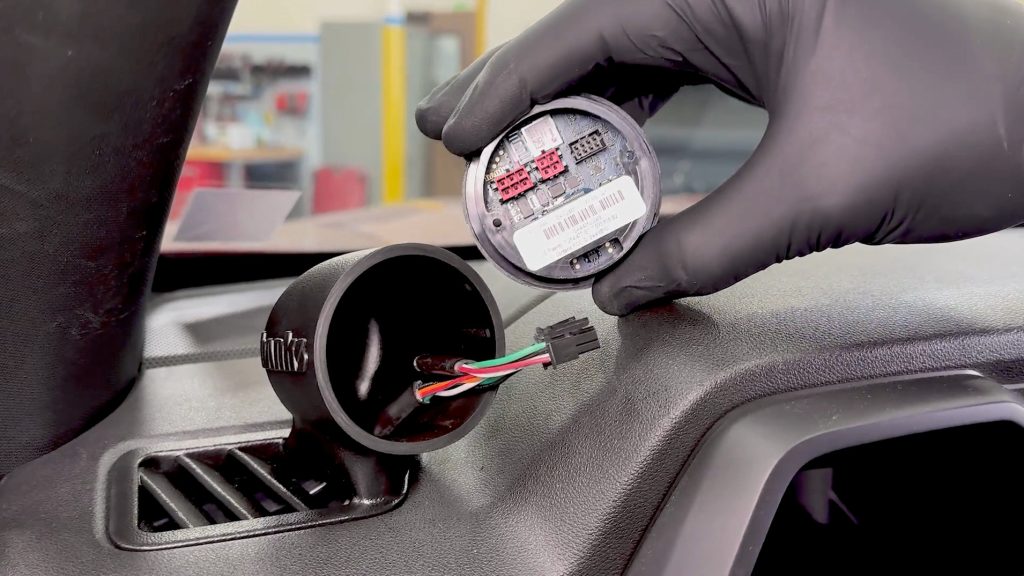

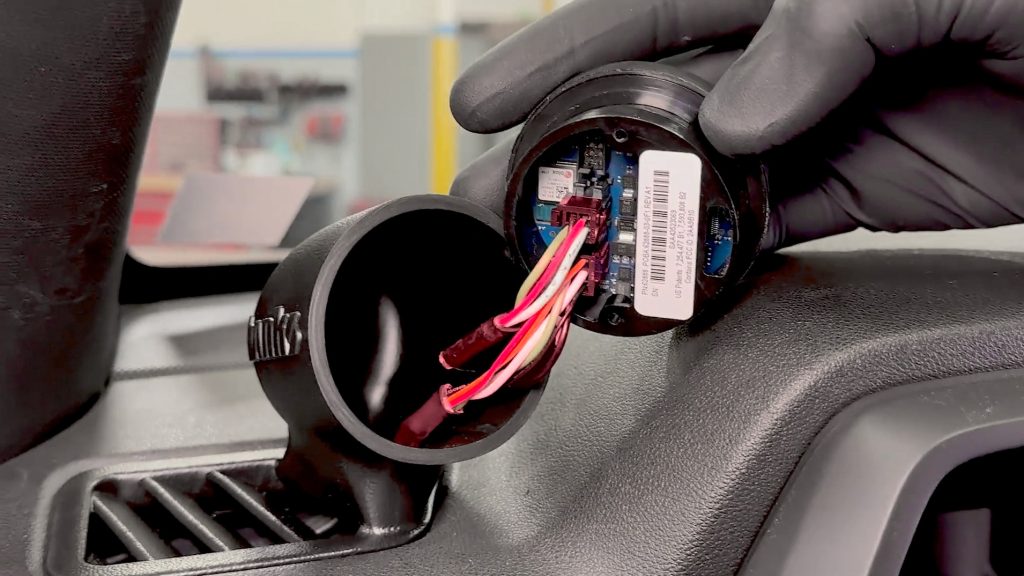

6. Grab your Stealth Pod and connect the 4 OBD cables in the rear.

If you have a PedalMonster, connect it to the 6-Pin connector as well.

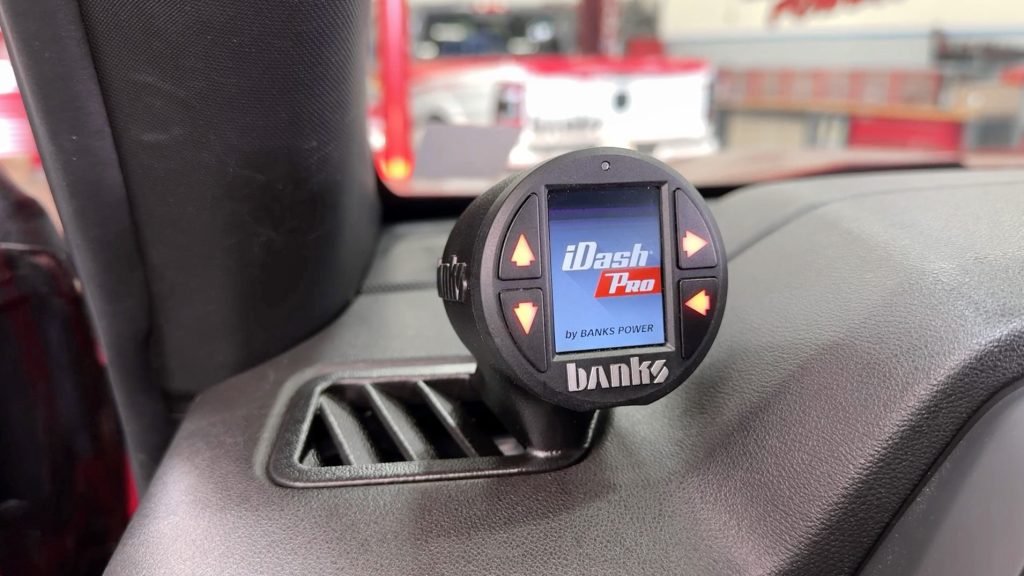

7. Install your iDash into the Stealth Pod

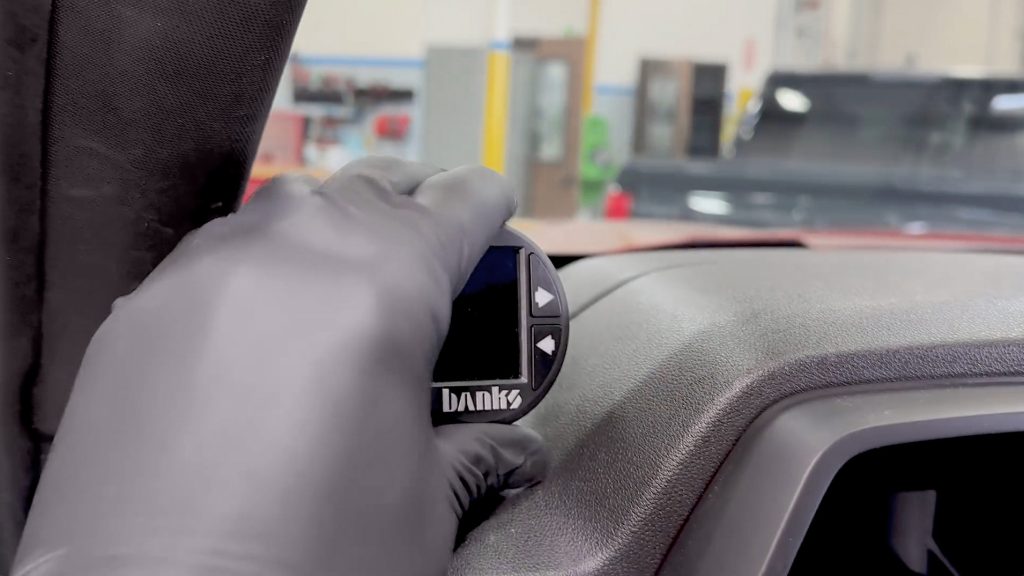

8. Clock the iDash

Be sure Banks logo is level.

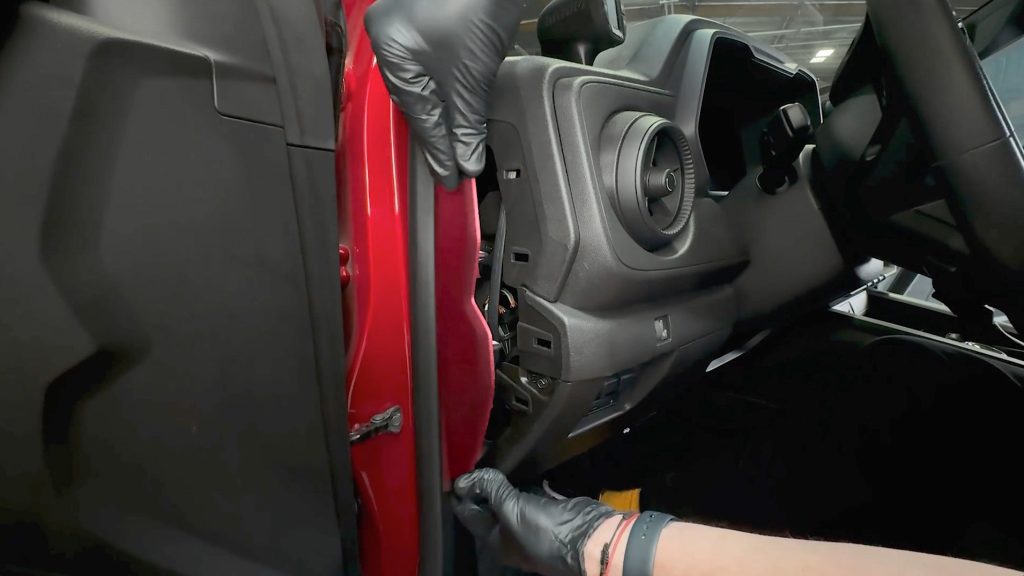

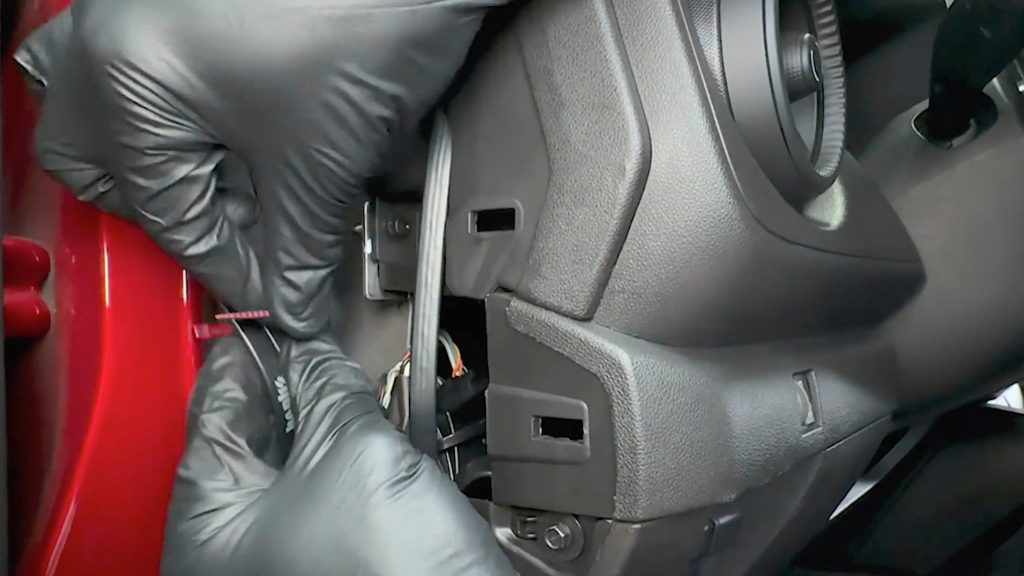

9. Tidy up any extra wire slack with the included zip ties and close the side of the dashboard.

10. Reconnect the battery.
