97752 MAP Sensor Relocation Kit for 2017-2024 Chevy/GMC 2500/3500 Duramax L5P 6.6L Diesel

INSTALL INSTRUCTIONS
Part #s 64410 & 64415

---------------- L5P MAP Sensor Relocation Kit for
2017-2024 Chevy/GMC 2500/3500 Duramax L5P 6.6L Diesel

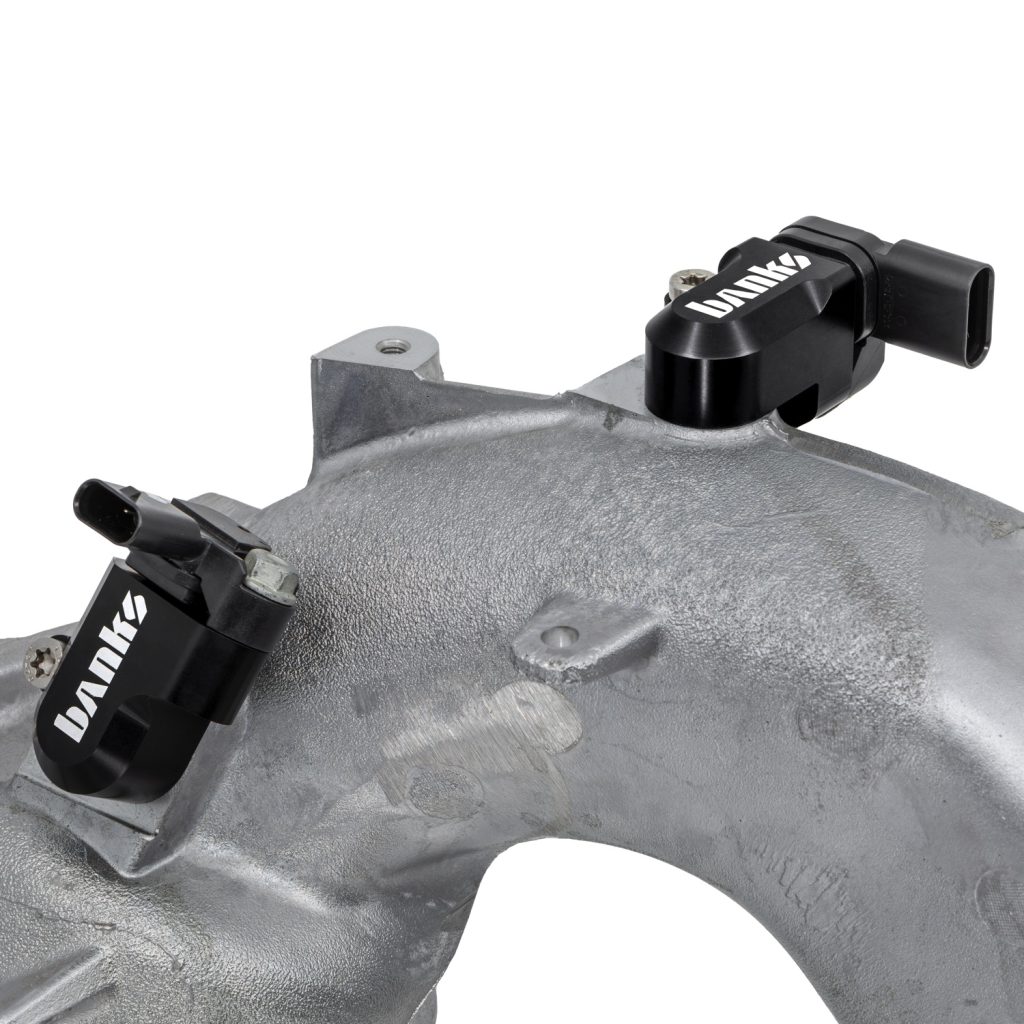

Note that 2023+ L5P Trucks have two MAP sensors with unique angled Banks Spacers. The second relocation kit for the lower sensor is installed using the same procedure as the top one.

Please read through the following instructions thoroughly before starting your installation. If you have any questions please visit our Support Page.


Bill of Materials

2017-2024 MAP Relocation Kit (Upper Sensor)

Part NumberDescriptionQTY
43629L5P MAP Spacer (Upper Sensor)1
91777Stainless Torx Button Head Bolt w/ Thread Locker 20mm Long2
93866Viton O-Ring1
93011T30 Torx Key1

2023.5+ Dual Sensor Relocation Kit also has the following parts

Part NumberDescriptionQTY
43638L5P MAP Spacer (Lower Sensor)1
91777Stainless Torx Button Head Bolt w/ Thread Locker 20mm Long2
93866Viton O-Ring1

General Installation Practices

NOTE: Disconnect Battery

Before unplugging your MAP sensor, it is important to disconnect both batteries and let the ECM discharge for at least 15min.

If you rush this step and unplug the MAP sensor, it can flag a Check Engine Light in the ECM on startup.


MAP Sensor Relocation Kit Installation

Locate MAP Sensor

1. Locate MAP sensor.

It is found on top of your intake manifold.

Slide locking Tab

2. Unplug MAP sensor.

Slide the locking tab back, then depress it to unlock the plug from the sensor.

10mm and remove bolt

3. Remove 10mm Bolt

Use a 10mm socket to remove the bolt; you’ll reuse it on the Banks MAP Spacer.

Twist and Remove

4. Remove MAP sensor

Twist and lift to free it from the intake manifold.


Use MAF cleaner only

Important: Use Mass Air Flow Cleaner Only.

Solvents such as brake cleaner will damage the sensor.

While GM does not recommend cleaning, we have seen favorable results using Mass Air Flow (MAF) Sensor Cleaner, available at most auto parts stores.

Remove deposits

5. Clean MAP sensor

Try not to overly spray the sensing wire; a rag or brush can be used for stuck-on debris.


6. Install MAP sensor into Banks Relocator

Twist while inserting the MAP sensor to prevent O-ring damage. Thread the 20mm long T-30 Torx screw by hand, then tighten snugly with the supplied Torx Key

Insert O-Ring

7. Install O-Ring

Don’t forget to install the newly supplied Viton o-ring into the Banks MAP Relocator.

Use Torx Bolt and Key

8. Install 20mm Torx Bolt

Tighten snugly by hand, a T30 Torx key is supplied.

Re Connect Harness

9. Reconnect MAP sensor

Be sure to slide the locking tab forward into place. Double-check that all bolts are snug.

10. For 2023-2025 truck with two sensors, repeat process with sensor located in lower positon.

Be sure to slide the locking tab forward into place. Double-check that all bolts are snug, and enjoy your new Banks Sensor Relocation Kit.
