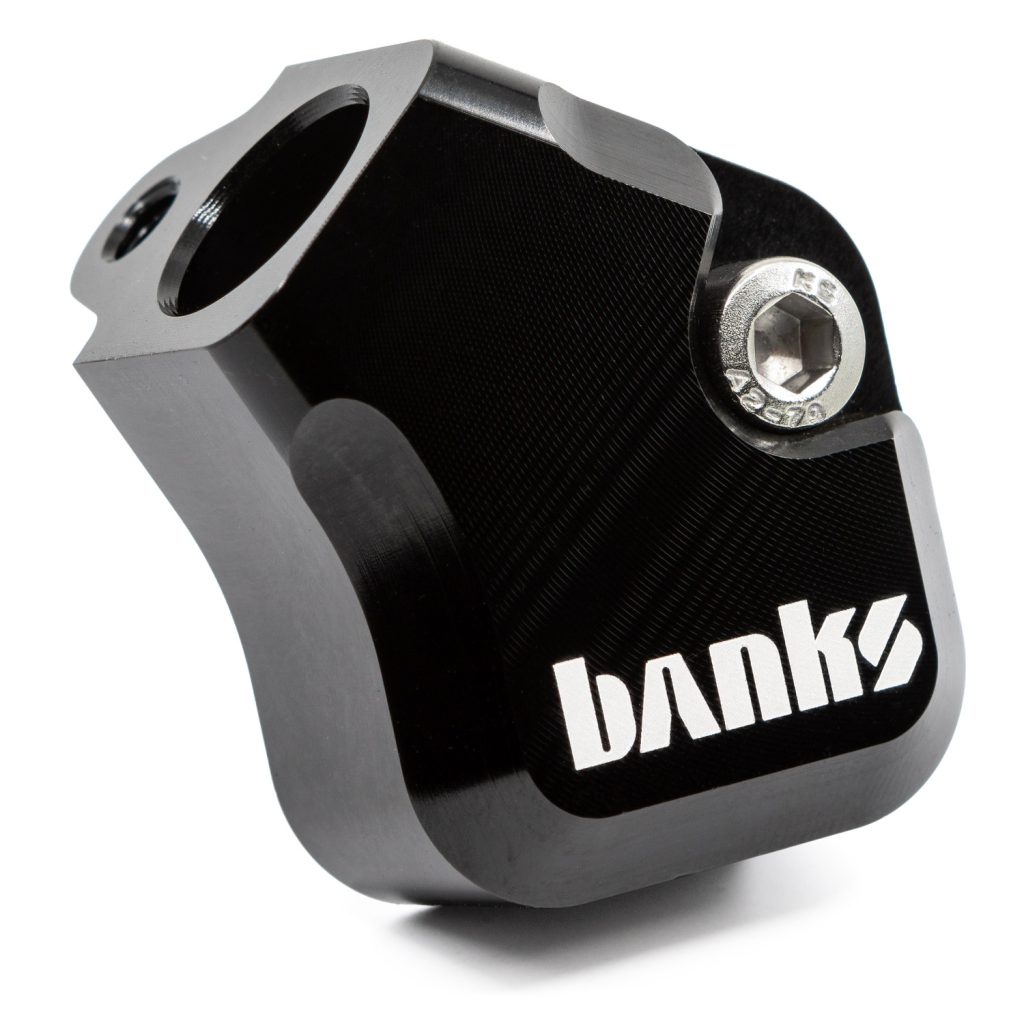

97762 MAP Sensor Relocation Kit For 2011-2019 Ford F250-550 6.7L Diesel

INSTALL INSTRUCTIONS
Part #s 64411

Please read through the following instructions thoroughly before starting your installation. If you have any questions please visit our Support Page.

Part Number	Description	QTY
43635	MAP Relocation Block	1
91778	4mm Socket Head Cap Screw w/ Thread Locker 22mm	1
93869	O-Ring	1
93009	4mm Alan Key	1

NOTE: Disconnect Battery

Before unplugging your MAP sensor, it is important to disconnect both batteries and let the ECM discharge for at least 15min.

1. Locate MAP sensor

It is mounted on the top of the intake manifold. Press the rear tab to release the plug.

2. Remove factory 7mm Bolt

Be carefull not to drop the bolt after removal.

3. Remove factory MAP Sensor

Set the sensor aside for cleaning, or prepare a new sensor for installation into the Banks MAP Relocation Bracket.

Important: Use Mass Air Flow Cleaner Only.

Solvents such as brake cleaner will damage the sensor.

4. Clean MAP sensor

Try not to overly spray directly into the sensor.

A rag or brush can be used for stuck-on debris.

5. Install O-Ring

Don’t forget to install the newly supplied o-ring into the Banks MAP Spacer.

6. Install MAP sensor into Banks Relocator

Twist while inserting the MAP sensor to prevent O-ring damage.

Thread the factory 7mm bolt in by hand, then tighten it snugly.

7. Bring the assembled Banks MAP relocation bracket back to the engine intake manifold.

8. Mount the MAP relocation Bracket with the supplied Hex Bolt.

Start by hand, then use the supplied T20 Torx key. Be sure to reconnect the MAP sensor to the engine harness.

Be sure to reconnect the MAP sensor to the engine harness.

Reconnect both batteries and enjoy your new Banks MAP Sensor Relocation Kit.
